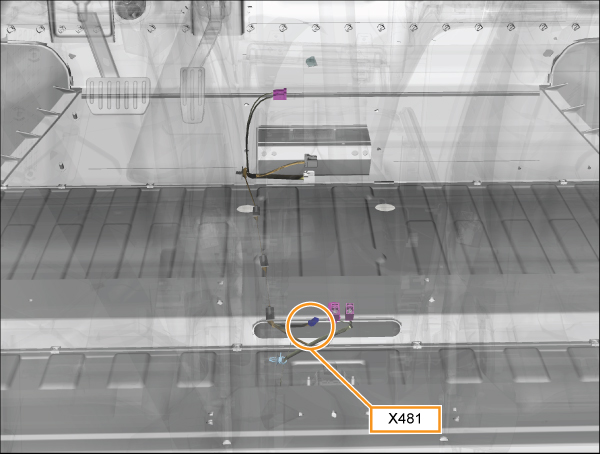

Location:
Connector Detail: JST 03R-JWPF-VSLE-S
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | X982M-3 | JST SWPR-001T-P025 | | 1099501-00-A | |
| 2 | SI | 0.35 | SN | X982M-5 | JST SWPR-001T-P025 | | 1099501-00-A | |
| 3 | BK | 0.35 | SN | X982M-4 | JST SWPR-001T-P025 | | 1099501-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | X982M-3 | JST SWPR-001T-P025 | | 1099501-00-A | |
| 2 | SI | 0.35 | SN | X982M-5 | JST SWPR-001T-P025 | | 1099501-00-A | |
| 3 | BK | 0.35 | SN | X982M-4 | JST SWPR-001T-P025 | | 1099501-00-A | |
