X482 - s-rhd-sop10

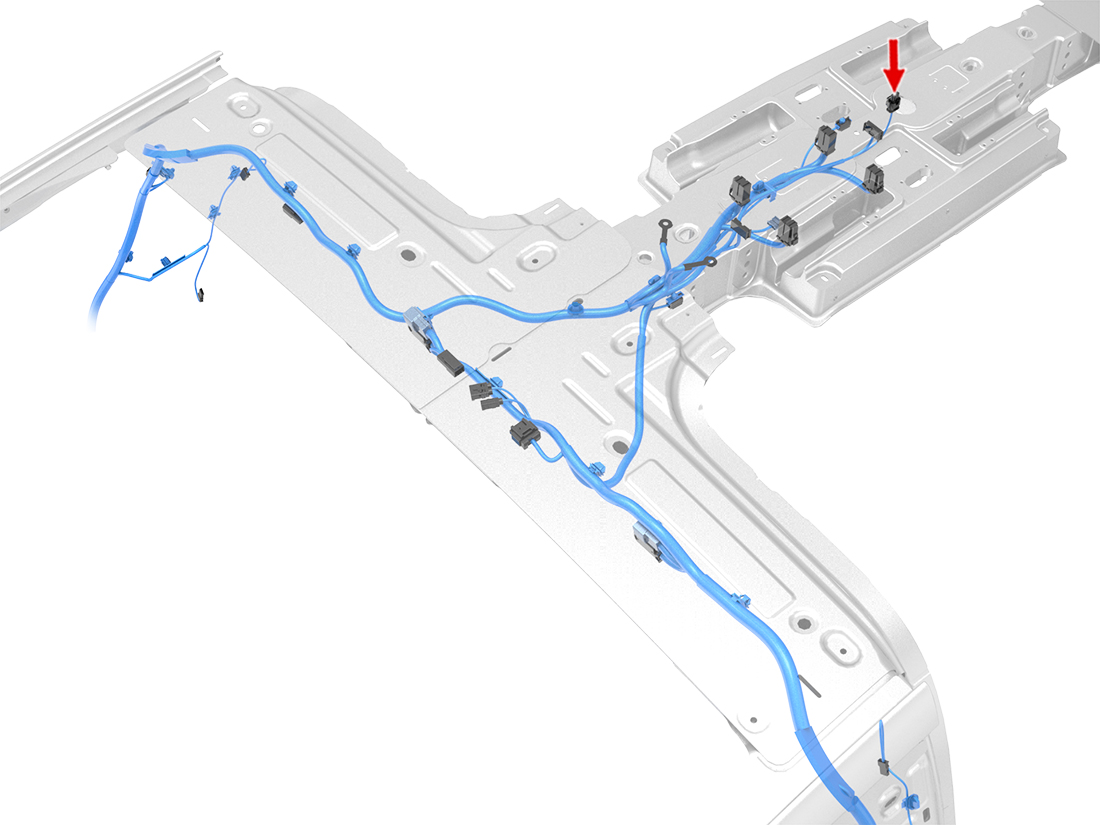

Location:

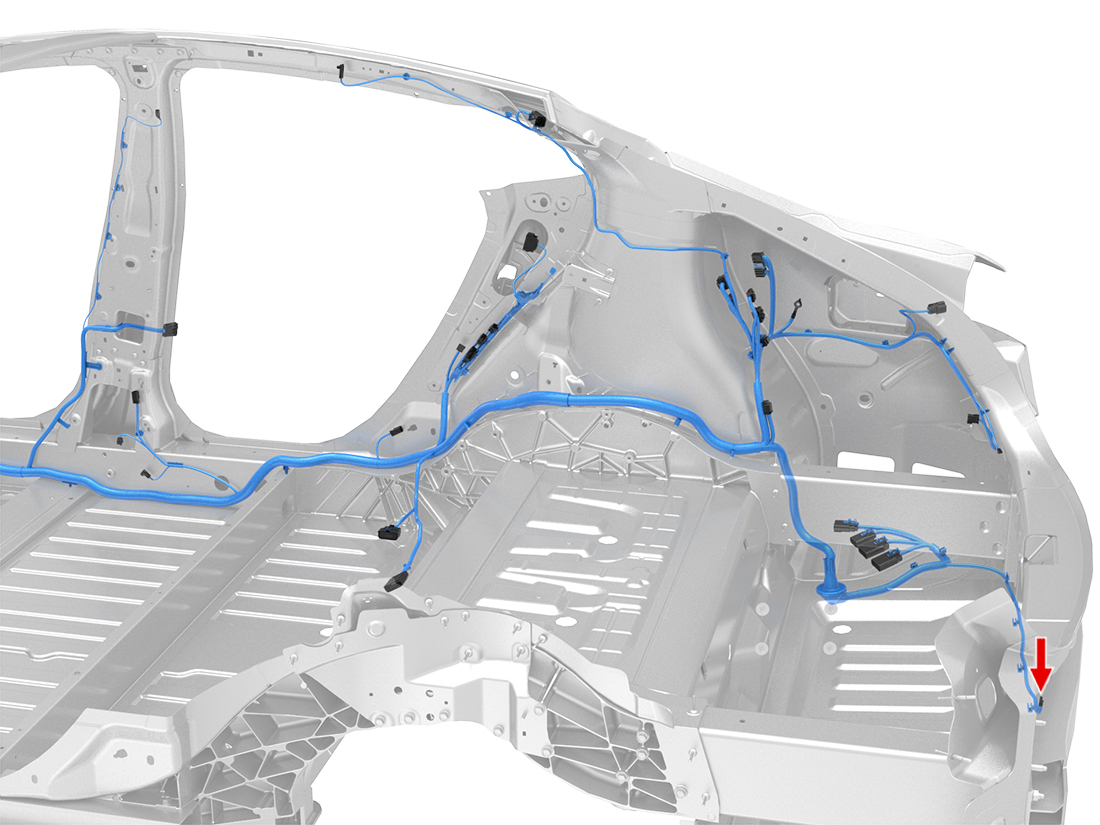

Location:
Connector Detail: JST 03R-JWPF-VSLE-S
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: HIRSCHMANN 872-858-546
Color: Curry
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X988F-8 | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A | |
| 2 | WH | 0.35 | SN | Z4-SEC09-L | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A | |
| 3 | BK | 0.35 | SN | X988F-21 | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X976M-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | GN | 0.35 | SN | X970M-14 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | GY | 0.35 | SN | X976M-3 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X976M-1 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | GN | 0.35 | SN | X970M-14 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | GY | 0.35 | SN | X976M-3 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X988F-8 | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A | |
| 2 | WH | 0.35 | SN | Z4-SEC09-L | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A | |
| 3 | BK | 0.35 | SN | X988F-21 | JST SWPR-001T-P025 | Tesla MAT-120-170 | 1099501-00-A |
