X484B - s-rhd-sop10

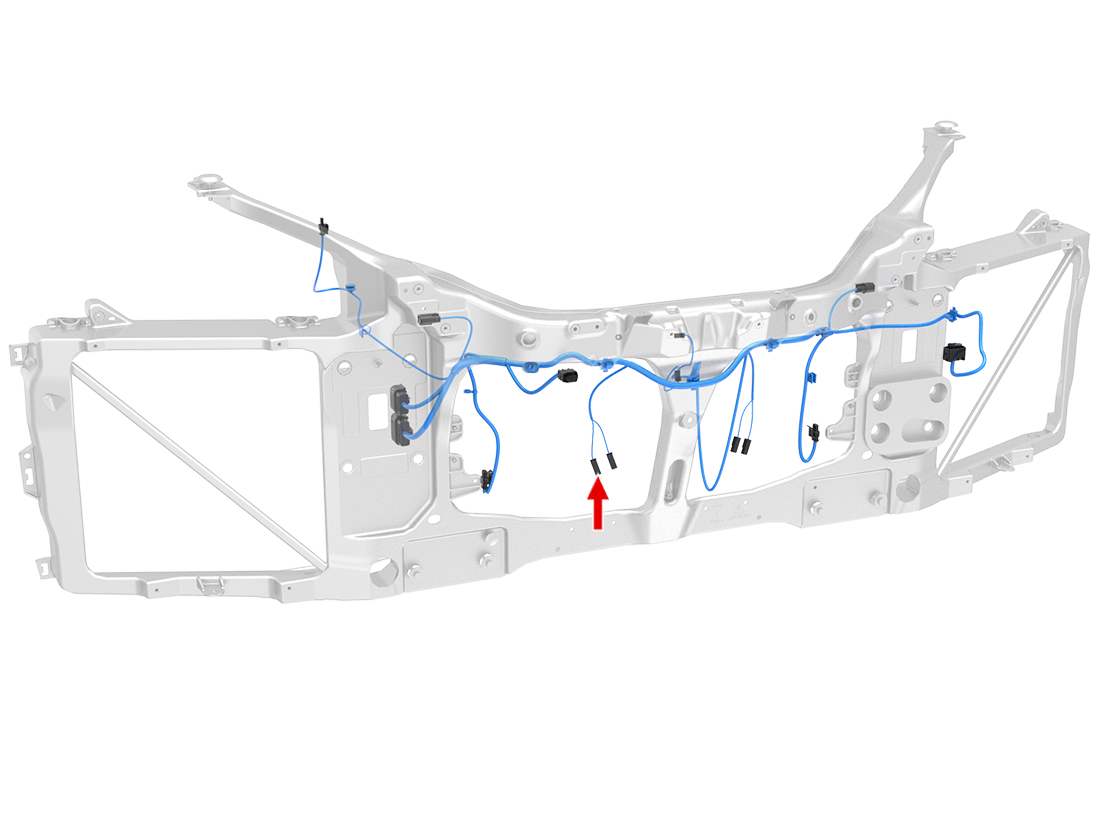

Location:
Connector Detail: AMP 171809-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.75 | SN | X966F-5 | AMP 170233-2 | 1099442-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.75 | SN | X966F-5 | AMP 170233-2 | 1099442-00-A |
