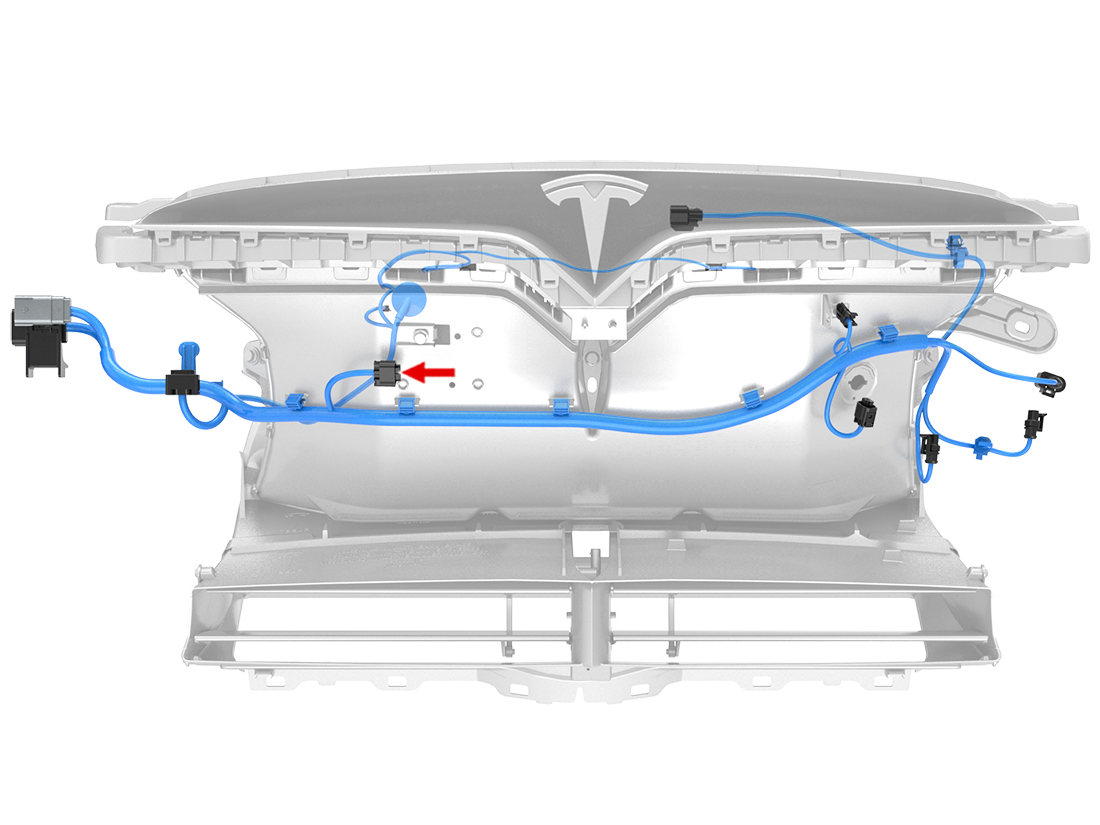

Location:
Connector Detail: AMP 1-967640-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GN | 0.5 | SN | X906M-12 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 3 | BK | 0.35 | SN | Z3-+GJRF106-R | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 4 | VT/WH | 0.5 | SN | X906M-13 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GN | 0.5 | SN | X906M-12 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 3 | BK | 0.35 | SN | Z3-+GJRF106-R | AMP 5-962885-1 | AMP 967067-2 | 1099457-00-B | |
| 4 | VT/WH | 0.5 | SN | X906M-13 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
