X485A - s-rhd-sop10

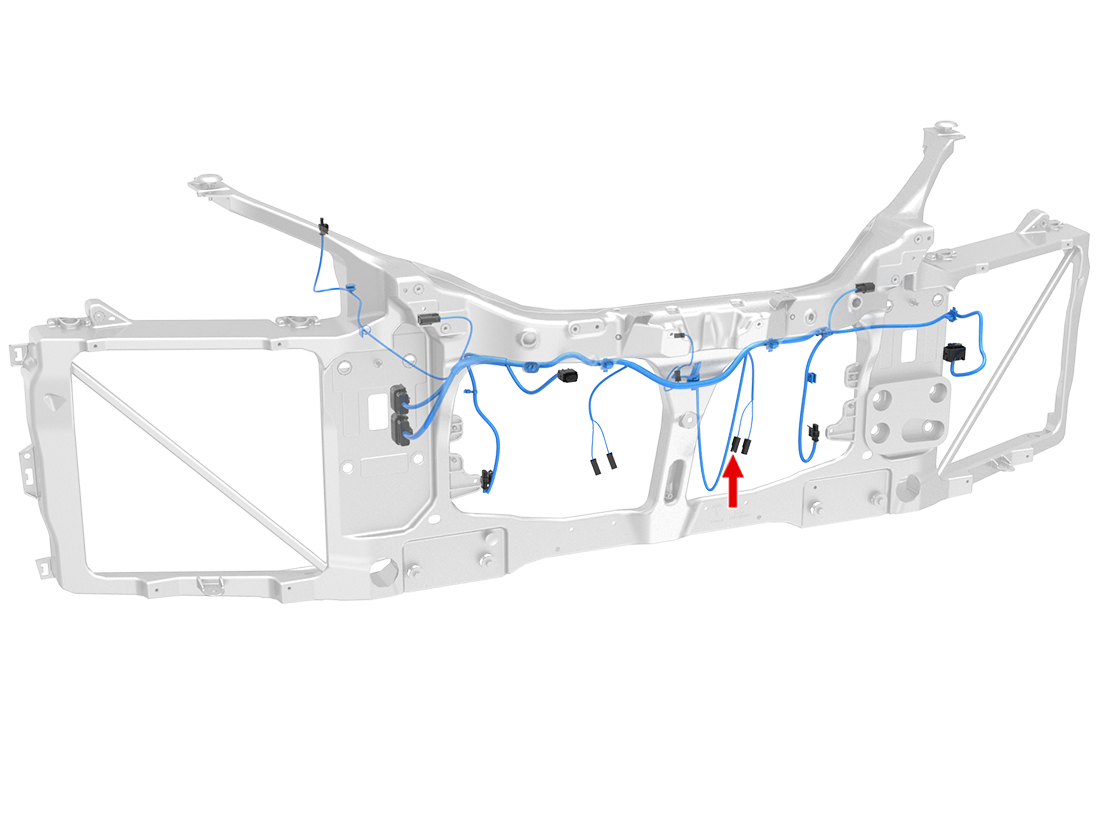

Location:
Location:
Connector Detail: AMP 171809-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 2-1718806-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.75 | SN | X966F-14 | AMP 170233-2 | 1099442-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.5 | SN | X906M-13 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BK | 0.35 | SN | Z3-+GJRF106-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | GN | 0.5 | SN | X906M-12 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.5 | SN | X906M-13 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | BK | 0.35 | SN | Z3-+GJRF106-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | GN | 0.5 | SN | X906M-12 | AMP 7-1452668-1 | AMP 967067-2 | 1099461-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GY | 0.75 | SN | X966F-14 | AMP 170233-2 | 1099442-00-A |
