X486 - s-rhd-sop10

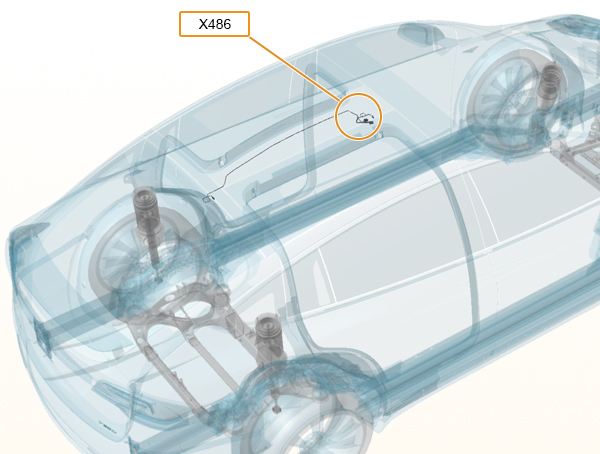

Location:
Connector Detail: JAE MX34E08SF1
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X981F-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | GN | 0.35 | SN | X981F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/BU | 0.35 | SN | X981F-6 | JAE M34S75C4F1 | 1099499-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X981F-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | GN | 0.35 | SN | X981F-7 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | RD/BU | 0.35 | SN | X981F-6 | JAE M34S75C4F1 | 1099499-00-B |
