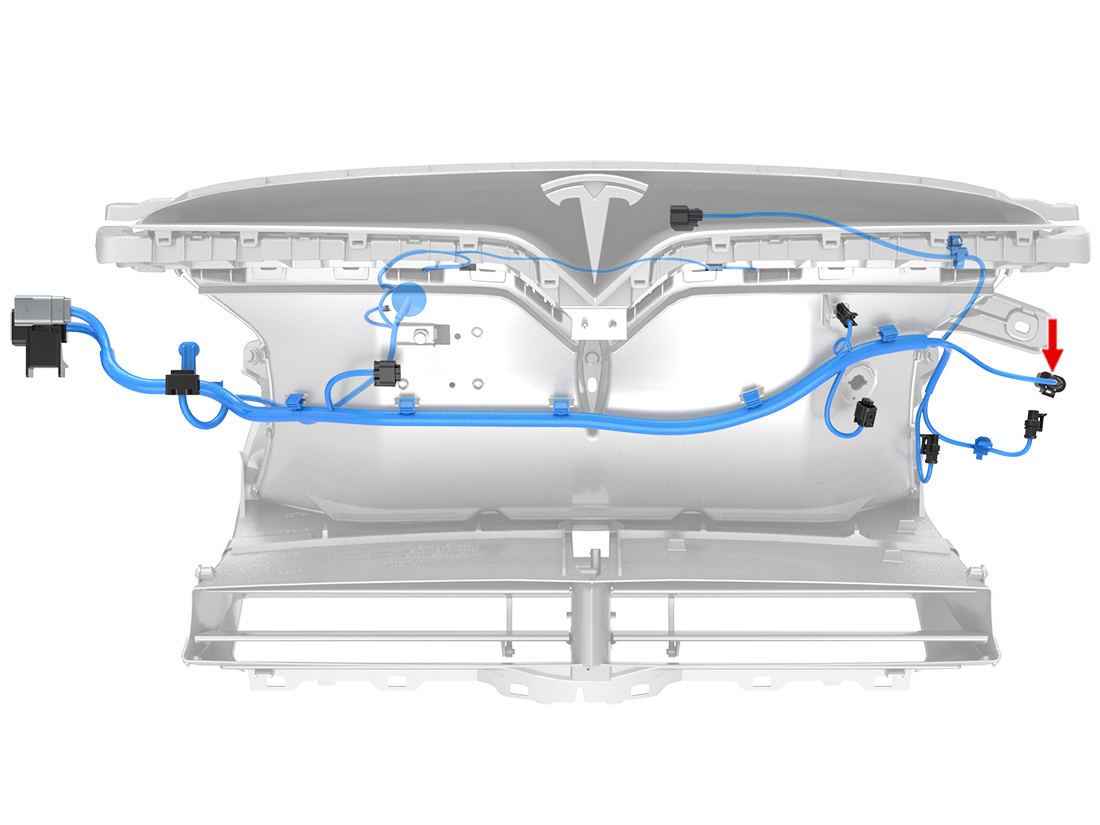

Location:
Location:
Connector Detail: FEP 42121300
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X581-7 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | BK | 0.35 | SN | G500-1 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | RD/BU | 0.35 | SN | X561-32 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X905M-7 | AMP 964274-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | AMP 964274-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | RD/BU | 0.5 | SN | X906M-3 | AMP 964274-2 | AMP 963530-1 | 1099471-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X905M-7 | AMP 964274-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | AMP 964274-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | RD/BU | 0.5 | SN | X906M-3 | AMP 964274-2 | AMP 963530-1 | 1099471-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN | 0.35 | SN | X581-7 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 2 | BK | 0.35 | SN | G500-1 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 3 | RD/BU | 0.35 | SN | X561-32 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
