X491 - s-rhd-sop10

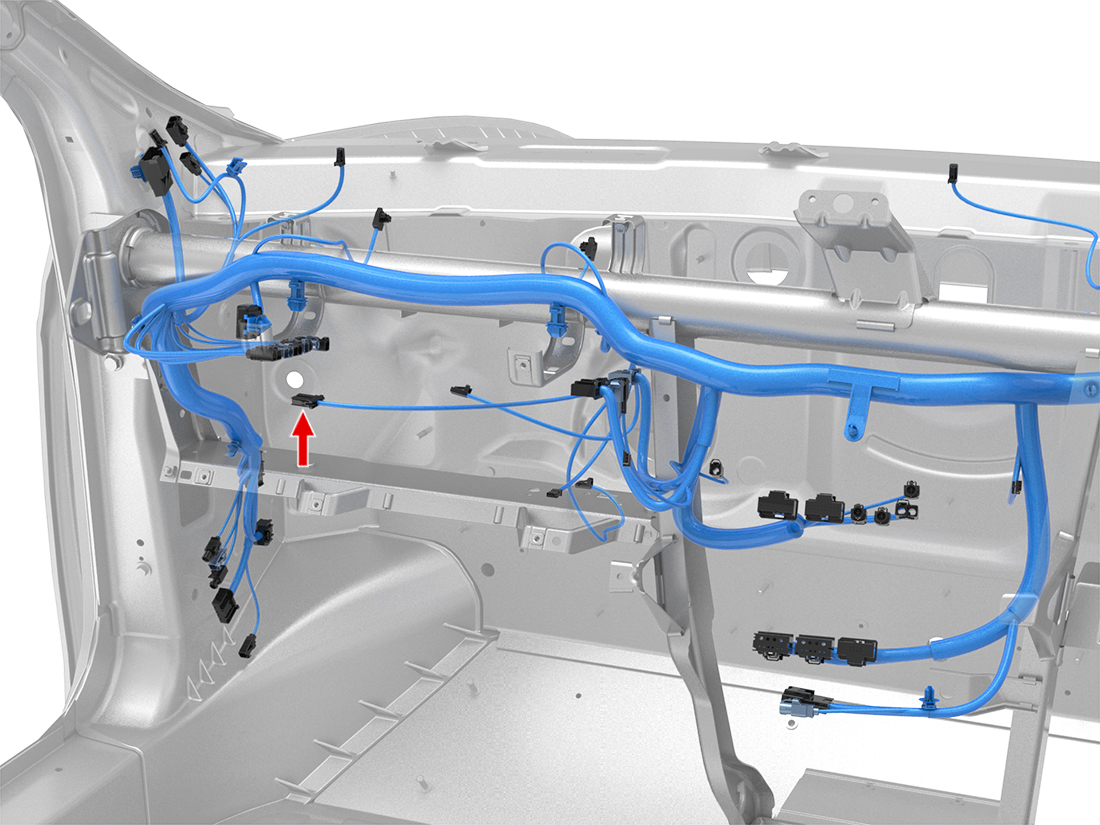

Location:
Location:
Location:
Connector Detail: AMP 1-178128-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Delphi 13973607
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z52-GDD10-R | AMP 1-175195-5 | 1099425-00-C | ||
| 2 | GY | 0.35 | SN | X948F-6 | AMP 1-175195-5 | 1099425-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X062-16 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 1 | RD | 0.5 | SN | X062A-3 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X062-5 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X062A-1 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X062-16 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 1 | RD | 0.5 | SN | X062A-3 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X062-5 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X062A-1 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z52-GDD10-R | AMP 1-175195-5 | 1099425-00-C | ||
| 2 | GY | 0.35 | SN | X948F-6 | AMP 1-175195-5 | 1099425-00-C |
