X496 - s-rhd-sop10

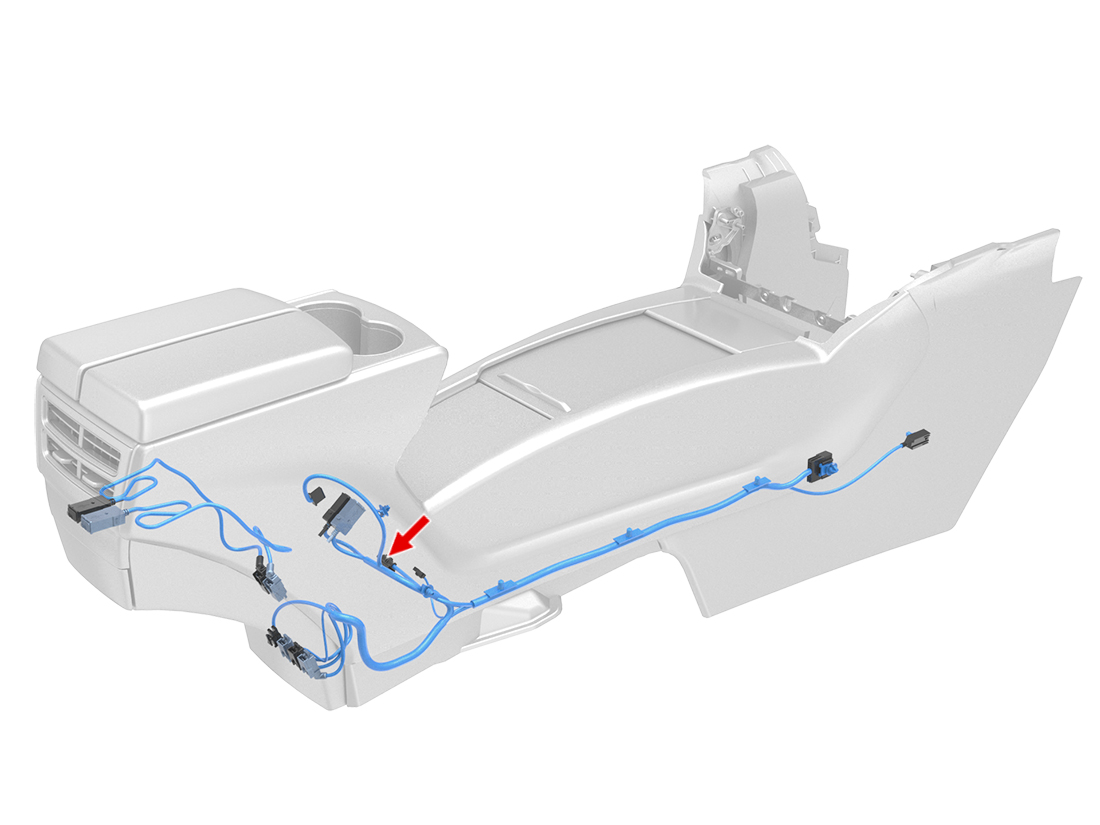

Location:
Connector Detail: Delphi 13973607
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X930M-3 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X930M-4 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X930M-3 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C | |
| 2 | BK | 0.5 | SN | X930M-4 | Delphi 13806233 | Delphi 33402838 | 1108333-00-C |
