X501 - s-rhd-sop10

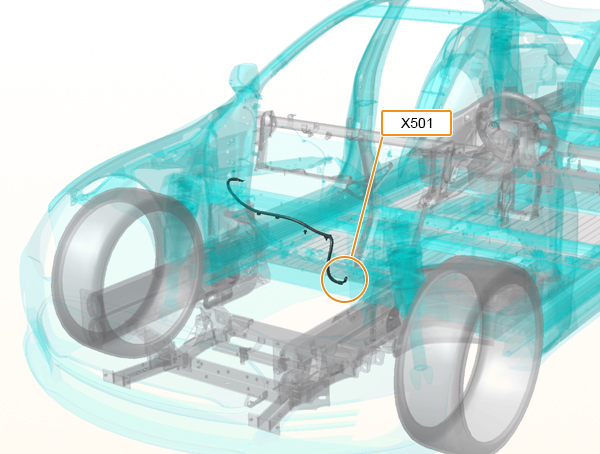

Location:
Location:
Connector Detail: Molex 34729-0201
Color: LightGray
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1322-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/GY | 32 | SN | X543-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.5 | SN | X512-1 | Molex 34803-3212 | 1099525-00-C | ||
| 3 | RD | 0.35 | SN | X509-4 | Molex 34803-3211 | 1099524-00-A | ||
| 4 | BN | 0.35 | SN | X508-4 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | BU/WH | 0.35 | SN | X510-4 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | BN | 0.35 | SN | X511-4 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | BN | 0.35 | SN | X912F-9 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | GN | 0.35 | SN | X912F-8 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | WH | 0.35 | SN | X750-10 | Molex 34803-3211 | 1099524-00-A | ||
| 12 | RD | 0.35 | SN | X750-21 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | GY | 0.35 | SN | X509-3 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GY/WH | 0.35 | SN | X508-3 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X510-3 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BN/WH | 0.35 | SN | X511-3 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | WH | 0.35 | SN | X751-1 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | BU | 0.35 | SN | X751-12 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | WH | 0.35 | SN | X912F-13 | Molex 34803-3211 | 1099524-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.5 | SN | X512-1 | Molex 34803-3212 | 1099525-00-C | ||
| 3 | RD | 0.35 | SN | X509-4 | Molex 34803-3211 | 1099524-00-A | ||
| 4 | BN | 0.35 | SN | X508-4 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | BU/WH | 0.35 | SN | X510-4 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | BN | 0.35 | SN | X511-4 | Molex 34803-3211 | 1099524-00-A | ||
| 9 | BN | 0.35 | SN | X912F-9 | Molex 34803-3211 | 1099524-00-A | ||
| 10 | GN | 0.35 | SN | X912F-8 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | WH | 0.35 | SN | X750-10 | Molex 34803-3211 | 1099524-00-A | ||
| 12 | RD | 0.35 | SN | X750-21 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | GY | 0.35 | SN | X509-3 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GY/WH | 0.35 | SN | X508-3 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X510-3 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BN/WH | 0.35 | SN | X511-3 | Molex 34803-3211 | 1099524-00-A | ||
| 18 | WH | 0.35 | SN | X751-1 | Molex 34803-3211 | 1099524-00-A | ||
| 19 | BU | 0.35 | SN | X751-12 | Molex 34803-3211 | 1099524-00-A | ||
| 20 | WH | 0.35 | SN | X912F-13 | Molex 34803-3211 | 1099524-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/GY | 32 | SN | X543-1 | - |
