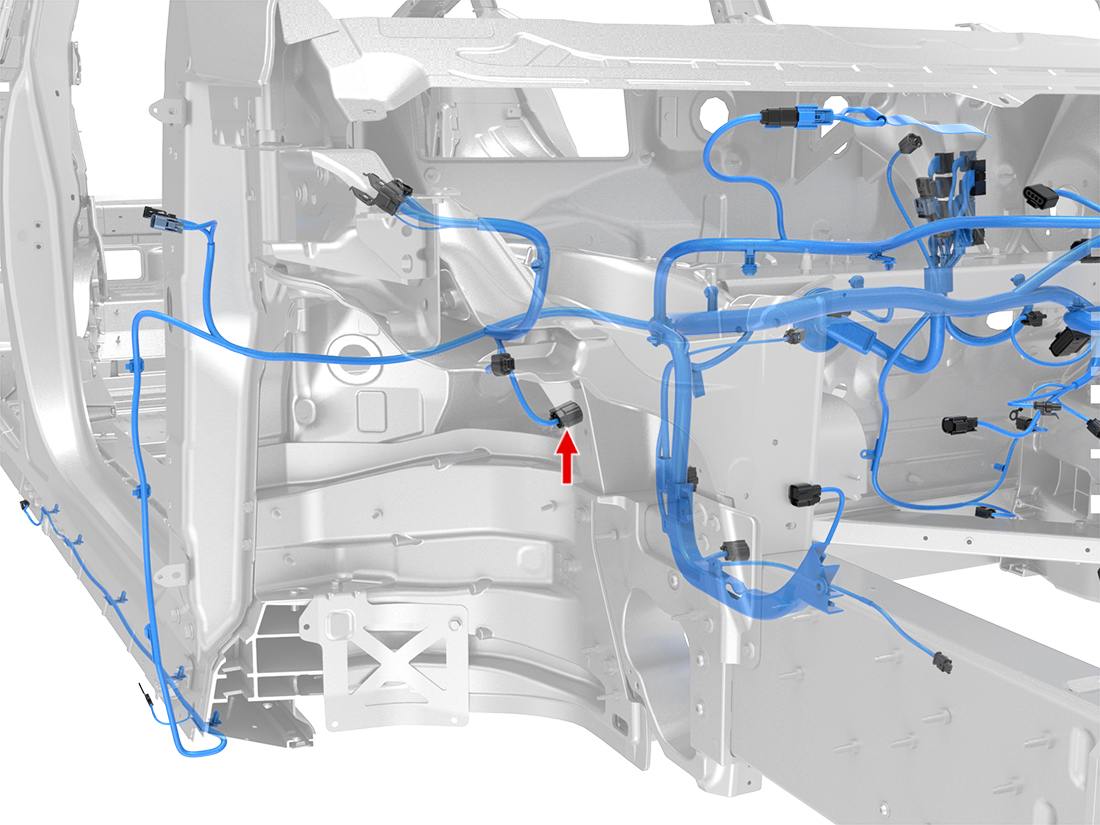

Location:
Connector Detail: Sumitomo 6189-7757
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 1 | SN | X001-31 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | BK | 1 | SN | GND_FR_RH2-1 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 3 | GN/WH | 0.35 | SN | X501-15 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | BU/WH | 0.35 | SN | X501-5 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 1 | SN | X001-31 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 2 | BK | 1 | SN | GND_FR_RH2-1 | Sumitomo 8240-0264 | Sumitomo 7165-0473 | 1099532-00-B | |
| 3 | GN/WH | 0.35 | SN | X501-15 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
| 4 | BU/WH | 0.35 | SN | X501-5 | Sumitomo 8240-0263 | Sumitomo 7165-0474 | 1099542-00-B | |
