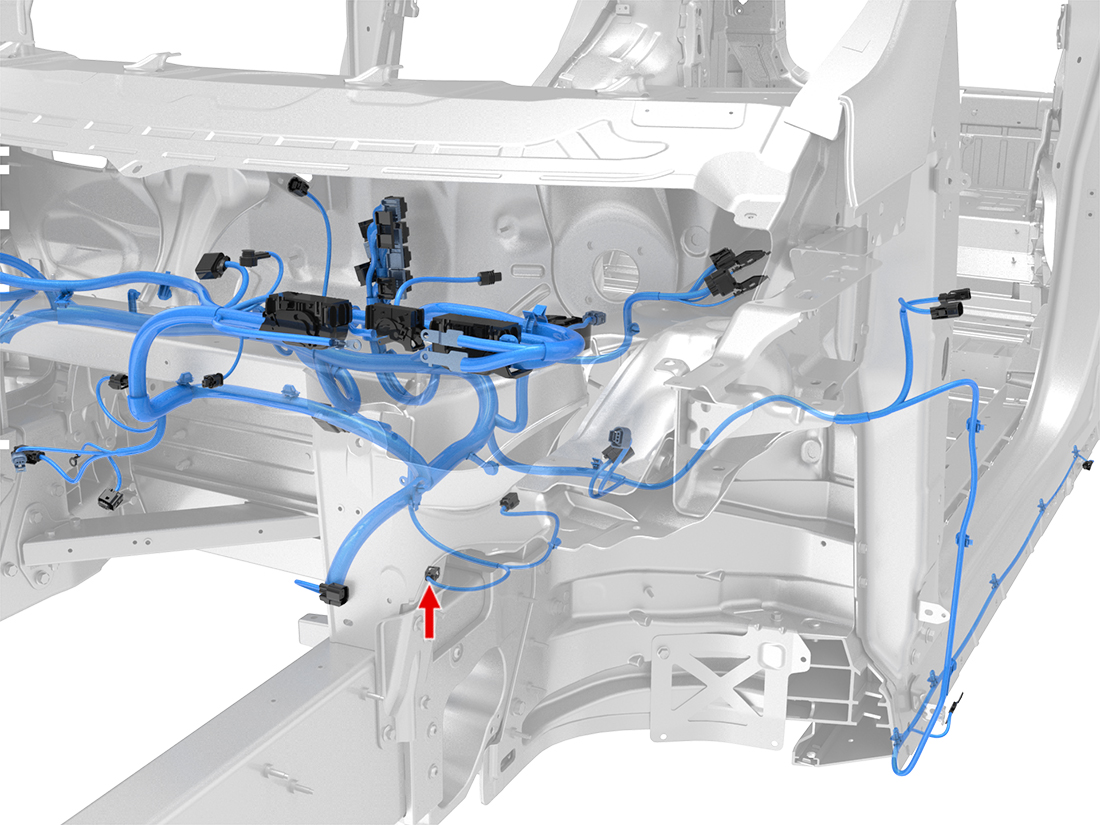

Location:
Connector Detail: Yazaki 7283-6078-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.75 | SN | X503-6 | Yazaki 7116-4721-02 | Tesla MAT-140-220 | 1099569-00-A | |
| 2 | BK/GY | 0.75 | SN | X503-16 | Yazaki 7116-4721-02 | Tesla MAT-140-220 | 1099569-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU/WH | 0.75 | SN | X503-6 | Yazaki 7116-4721-02 | Tesla MAT-140-220 | 1099569-00-A | |
| 2 | BK/GY | 0.75 | SN | X503-16 | Yazaki 7116-4721-02 | Tesla MAT-140-220 | 1099569-00-A | |
