X518 - s-rhd-sop10

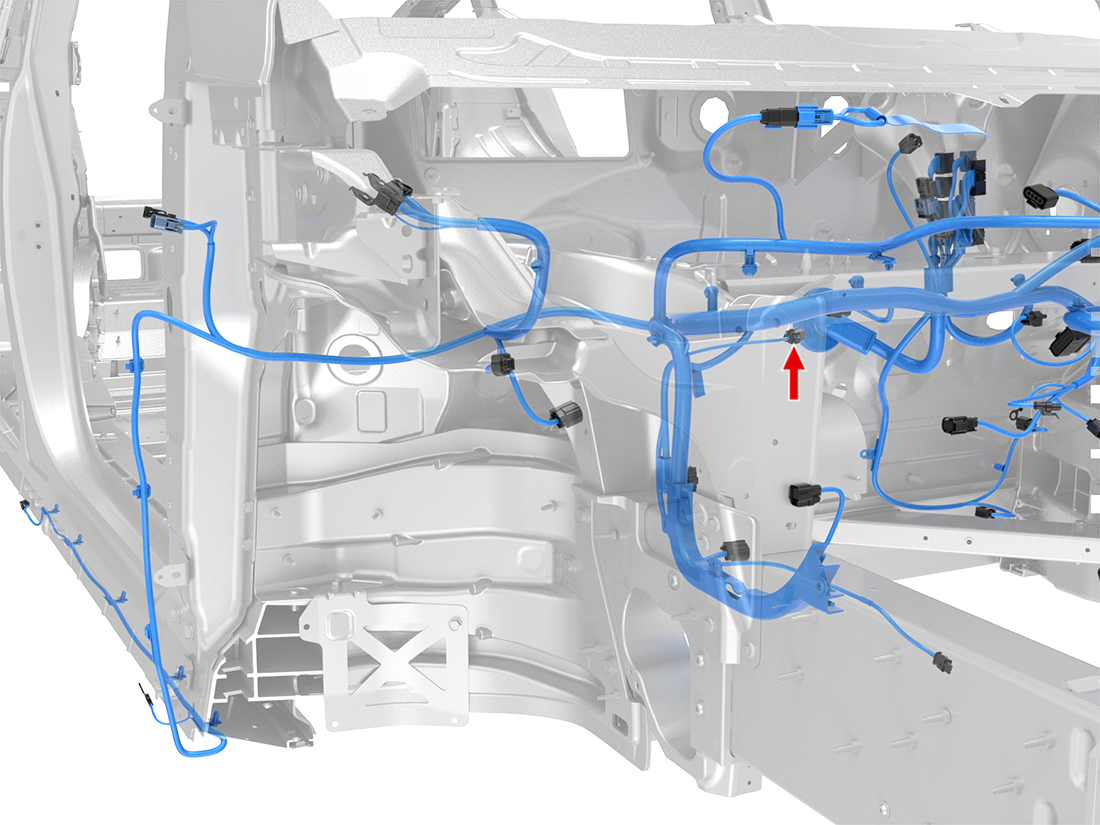

Location:
Connector Detail: Molex 31403-2100
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | SN | X503-9 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BK/WH | 0.5 | SN | X503-19 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN/WH | 0.5 | SN | X503-9 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A | |
| 2 | BK/WH | 0.5 | SN | X503-19 | Molex 33468-0023 | Tesla MAT-120-206 | 1099523-00-A |
