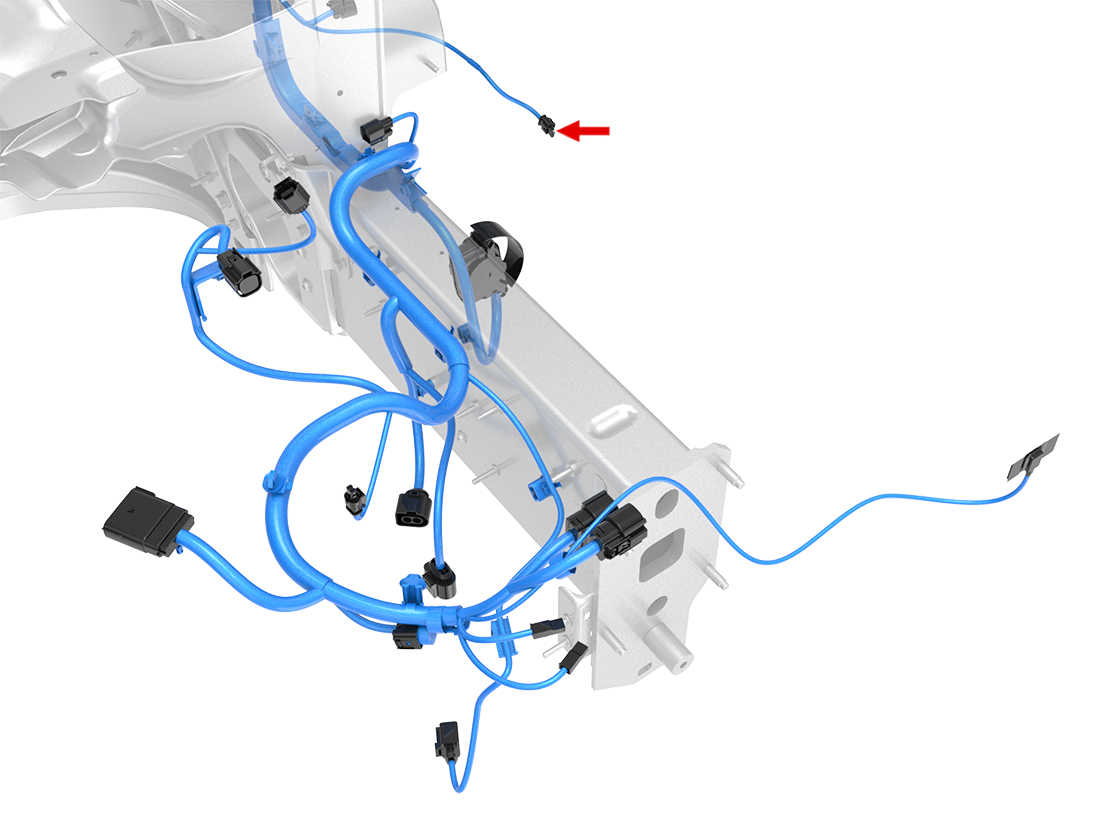

Location:
Connector Detail: AMP 1488991-5
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X752-3 | AMP 1670146-1 | AMP 967067-2 | 1102091-00-B | |
| 2 | RD/BU | 0.5 | SN | X003-13 | AMP 1670146-1 | AMP 967067-1 | 1102091-00-B | |
| 3 | BK | 0.5 | SN | GND_FR_RH2-1 | AMP 1670146-1 | AMP 967067-2 | 1102091-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X752-3 | AMP 1670146-1 | AMP 967067-2 | 1102091-00-B | |
| 2 | RD/BU | 0.5 | SN | X003-13 | AMP 1670146-1 | AMP 967067-1 | 1102091-00-B | |
| 3 | BK | 0.5 | SN | GND_FR_RH2-1 | AMP 1670146-1 | AMP 967067-2 | 1102091-00-B | |
