X522 - s-rhd-sop10

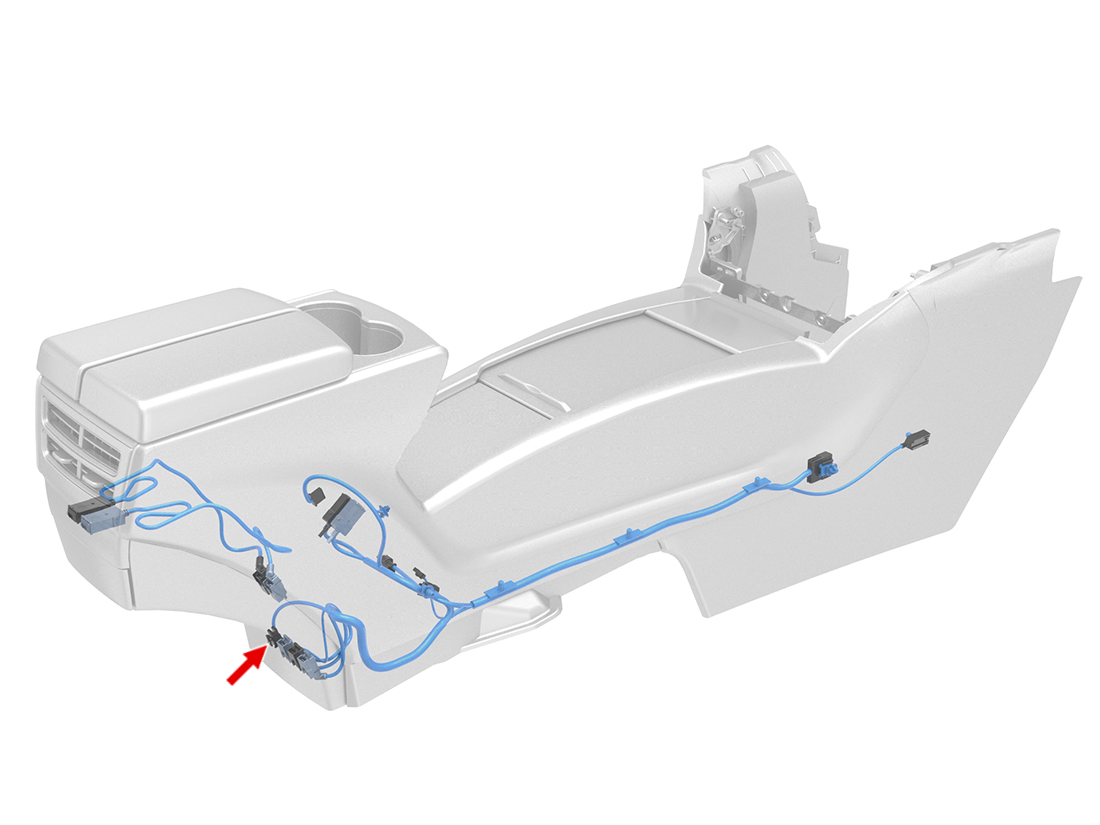

Location:

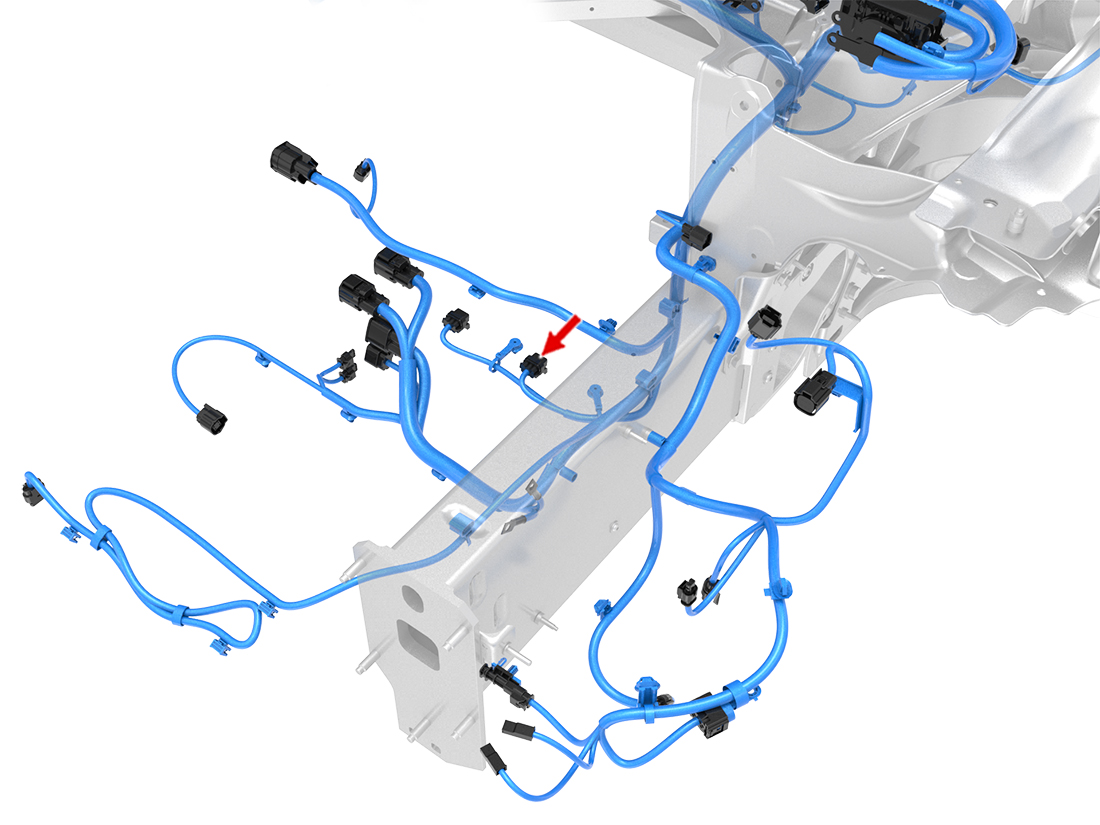

Location:
Connector Detail: Molex 31068-1010
Color: Black
Serviceability: Terminal Pigtail
Connector Detail: Delphi 35027669
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X982M-1 | AMP 1393366-1 | 1099437-00-A | ||
| 4 | BK/WH | 0.75 | SN | X982M-10 | AMP 1393366-1 | 1099437-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | GY/WH | 0.5 | SN | X500-17 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| C | BK | 0.5 | SN | GND_FR_LH1-1 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| D | GN/WH | 0.5 | SN | X502-19 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| F | BU/WH | 0.5 | SN | X502-9 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | GY/WH | 0.5 | SN | X500-17 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| C | BK | 0.5 | SN | GND_FR_LH1-1 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| D | GN/WH | 0.5 | SN | X502-19 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B | |
| F | BU/WH | 0.5 | SN | X502-9 | Delphi 12084200 | Delphi 15324974 | 1099477-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X982M-1 | AMP 1393366-1 | 1099437-00-A | ||
| 4 | BK/WH | 0.75 | SN | X982M-10 | AMP 1393366-1 | 1099437-00-A |
