X523 - s-rhd-sop10

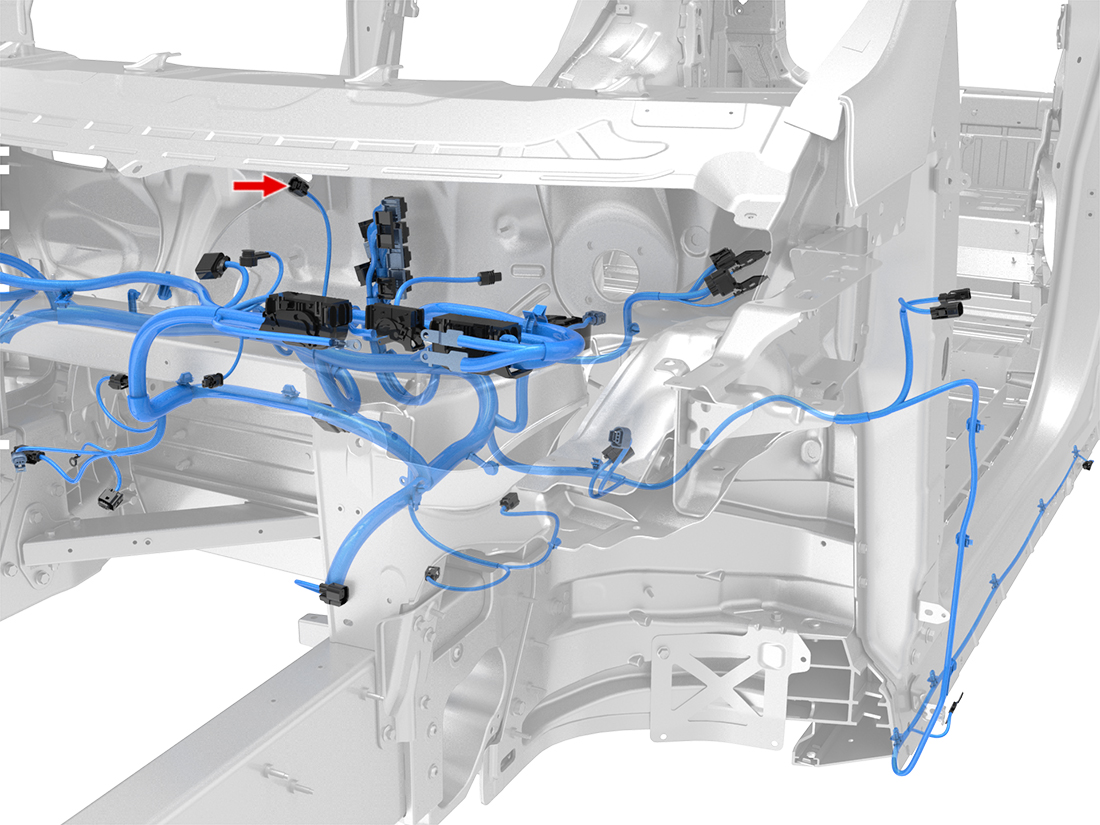

Location:

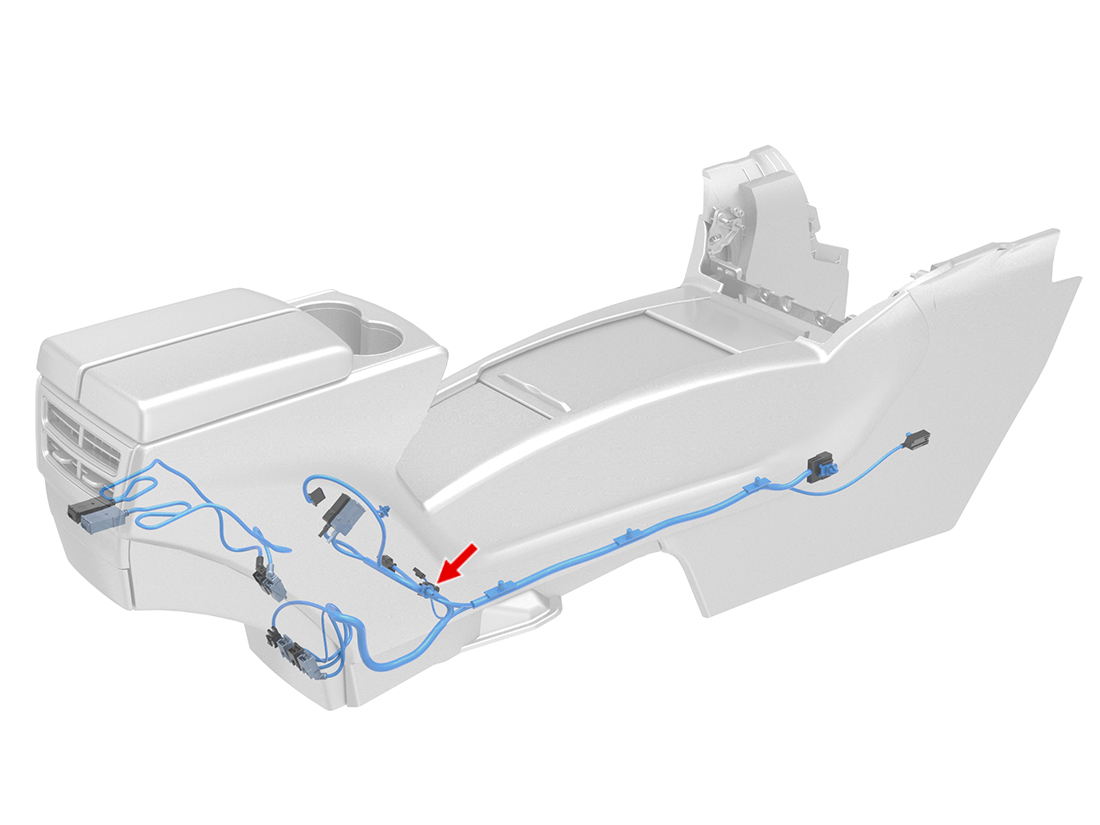

Location:
Connector Detail: AMP 184000-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-6445-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 1 | SN | X982M-18 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 2 | RD | 1 | SN | X982M-11 | Yazaki 7116-4271-02 | 1099563-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | SN | X500-12 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B | |
| 2 | BK/WH | 0.5 | SN | X500-3 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 0.5 | SN | X500-12 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B | |
| 2 | BK/WH | 0.5 | SN | X500-3 | AMP 184095-2 | AMP 184139-1 | 1099449-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 1 | SN | X982M-18 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 2 | RD | 1 | SN | X982M-11 | Yazaki 7116-4271-02 | 1099563-00-A |
