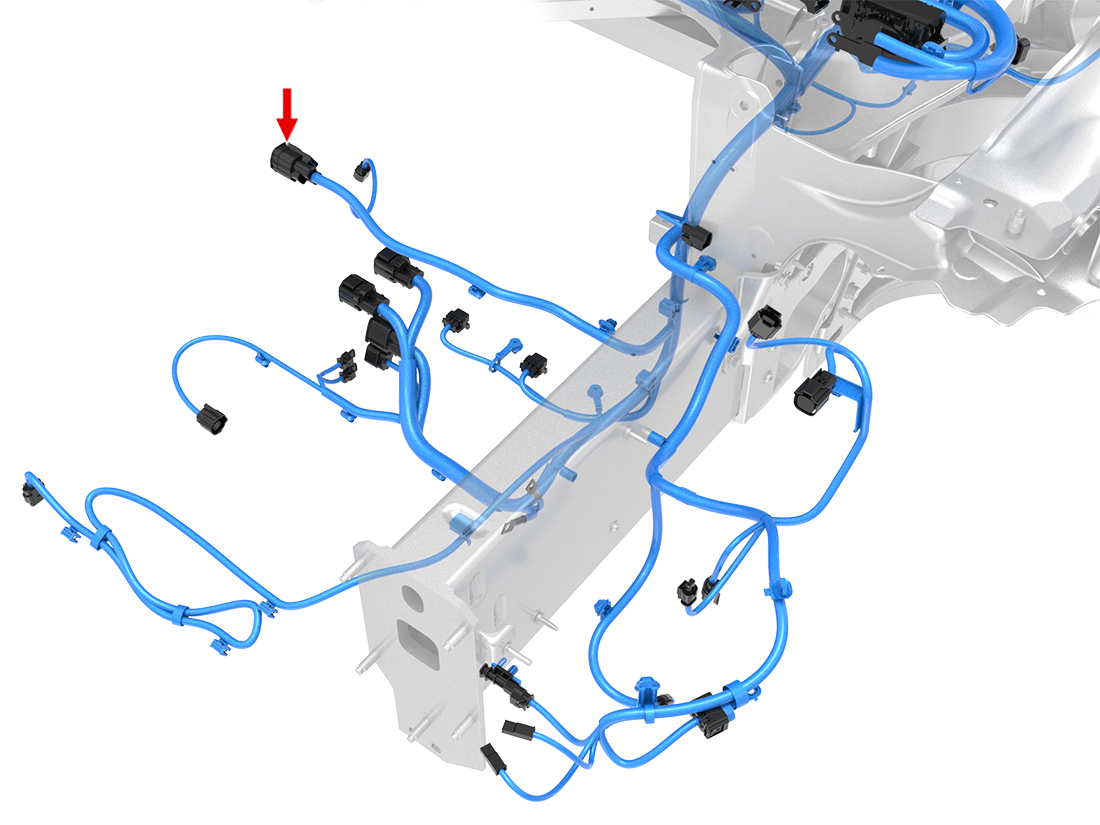

Location:
Connector Detail: Yazaki 7287-1404-10
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 5 | SN | X037-1 | Yazaki 7116-3250 | Yazaki 7172-5184 | 1116592-00-A | |
| 2 | BK | 5 | SN | GND_FR_LH1-1 | Yazaki 7116-3250 | Yazaki 7172-5184 | 1116592-00-A | |
| 4 | BU/WH | 0.5 | SN | X502-6 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 5 | SN | X037-1 | Yazaki 7116-3250 | Yazaki 7172-5184 | 1116592-00-A | |
| 2 | BK | 5 | SN | GND_FR_LH1-1 | Yazaki 7116-3250 | Yazaki 7172-5184 | 1116592-00-A | |
| 4 | BU/WH | 0.5 | SN | X502-6 | Yazaki 7116-4102-02 | Yazaki 7158-3030-50 | 1099558-00-B | |
