X527 - s-rhd-sop10

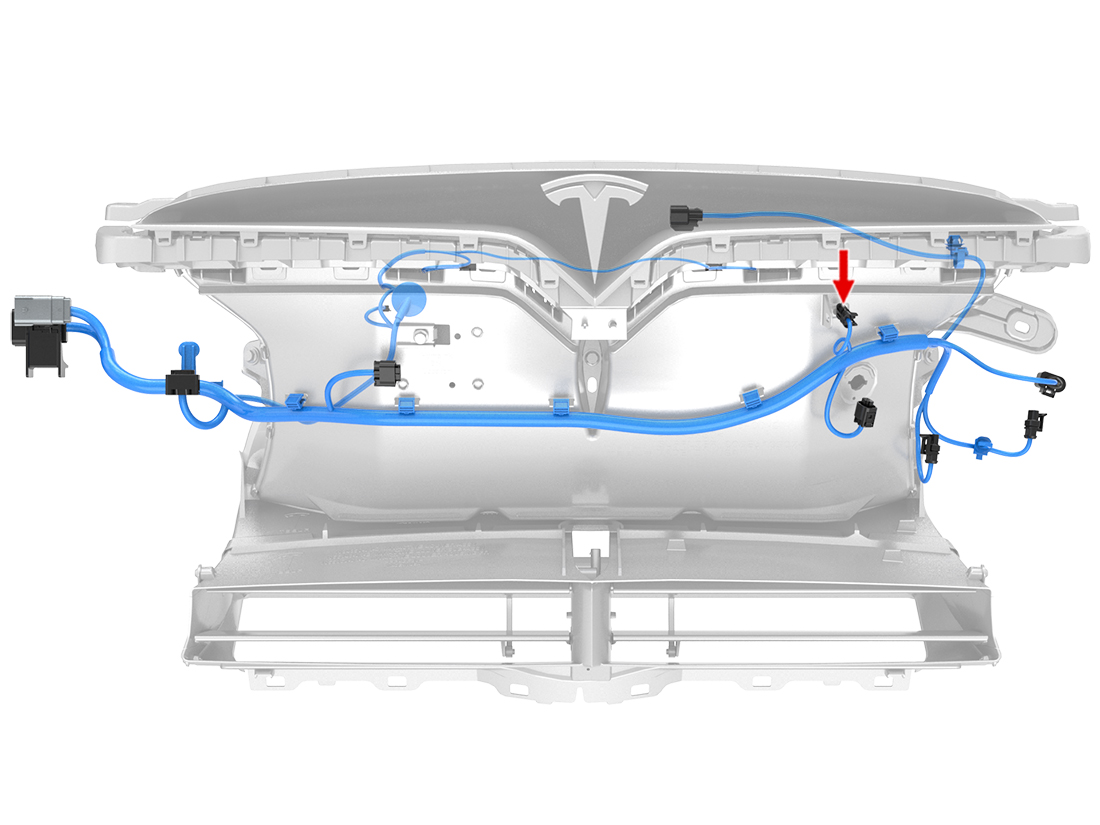

Location:

Location:

Connector Detail: KET 610320
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Vishay NTCALUGE3C91079
Color: SN
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X540-4 | - | - | not found | |
| 2 | BU | 0.35 | SN | X540-5 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X905M-2 | KET 730495-3 | KET 680448 | 1099502-00-B | |
| 2 | BU | 0.5 | SN | X905M-1 | KET 730495-3 | KET 680448 | 1099502-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X905M-2 | KET 730495-3 | KET 680448 | 1099502-00-B | |
| 2 | BU | 0.5 | SN | X905M-1 | KET 730495-3 | KET 680448 | 1099502-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X540-4 | - | - | not found | |
| 2 | BU | 0.35 | SN | X540-5 | - | - | not found |
