X531 - s-rhd-sop10

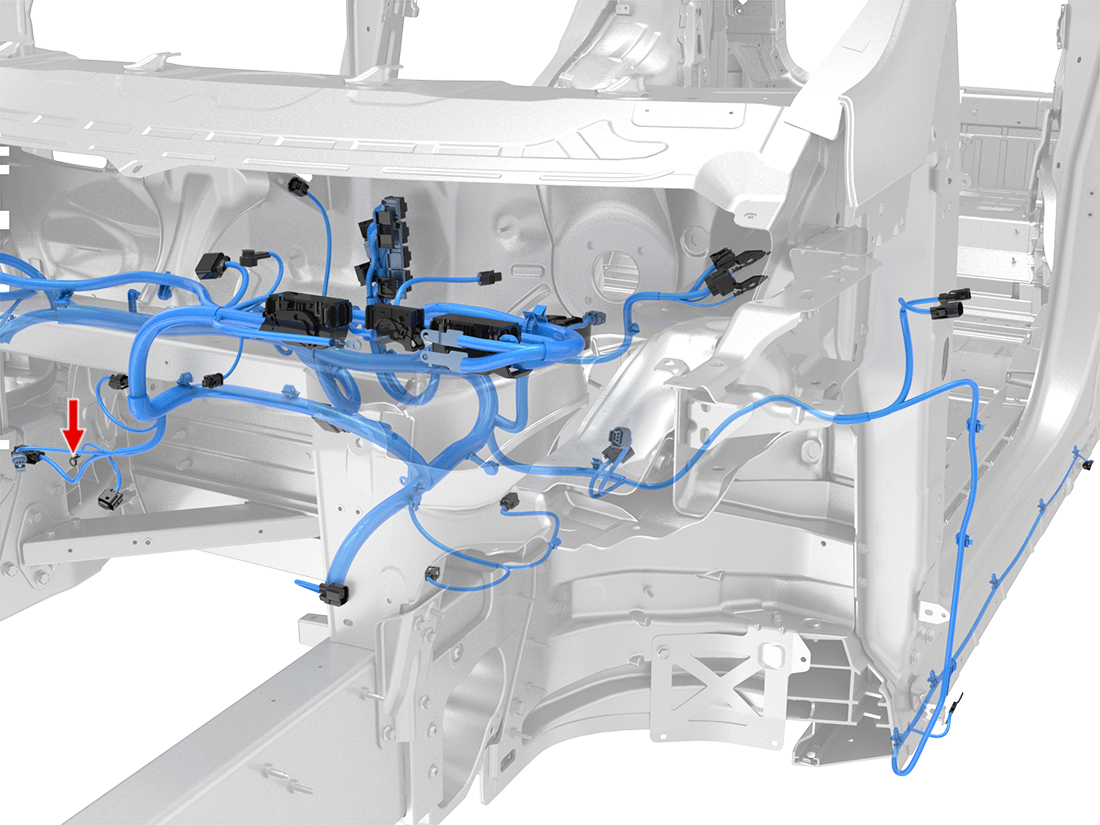

Location:
Location:
Connector Detail: Delphi 12146999
Color: SN
Serviceability: Not Serviceable
Connector Detail: Yazaki 7009-1333-02
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 16 | SN | X544-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 2.5 | SN | GND_FR_LH1-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 2.5 | SN | GND_FR_LH1-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 16 | SN | X544-1 | - |
