X535A - s-rhd-sop10

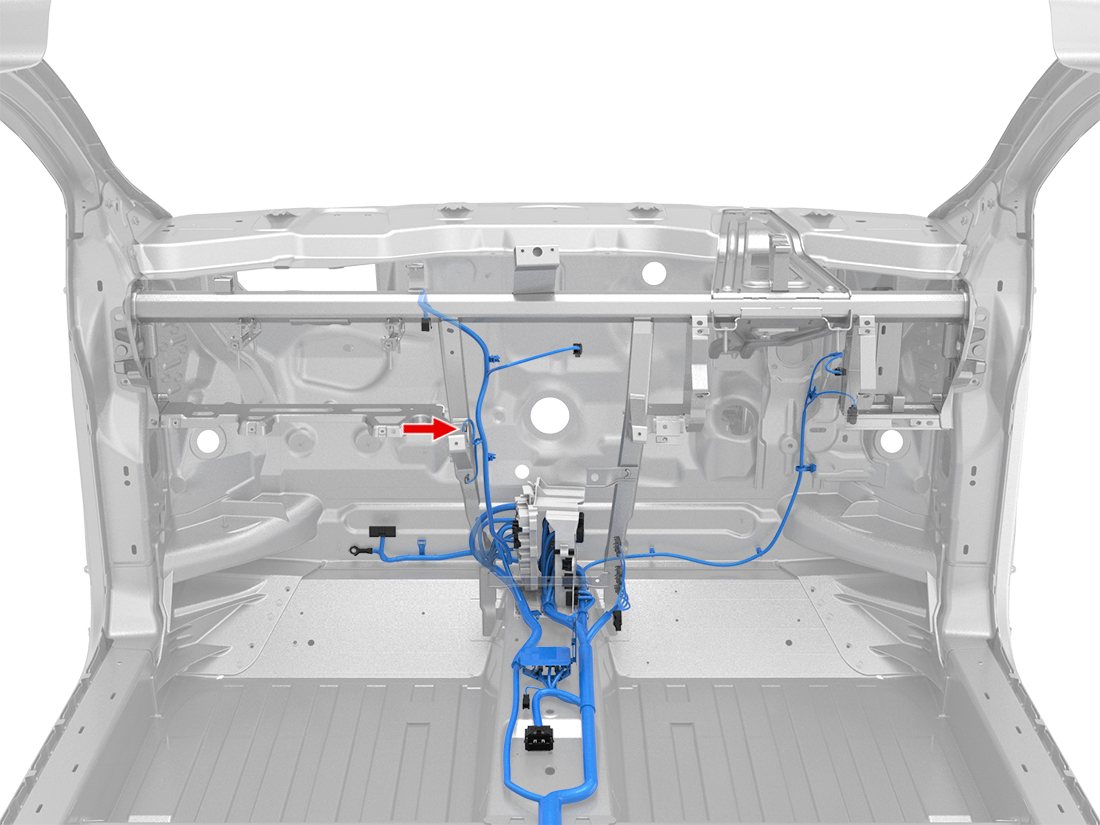

Location:
Connector Detail: AMP 936119-2
Color: Yellow
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | GND_C2-1 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | VT | 0.35 | SN | X703-19 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | VT/WH | 0.35 | SN | X703-8 | AMP 5-928999-1 | 1099455-00-B | ||
| 4 | RD/WH | 0.5 | SN | X028-6 | AMP 5-963715-1 | 1099458-00-A |
