X536 - s-rhd-sop10

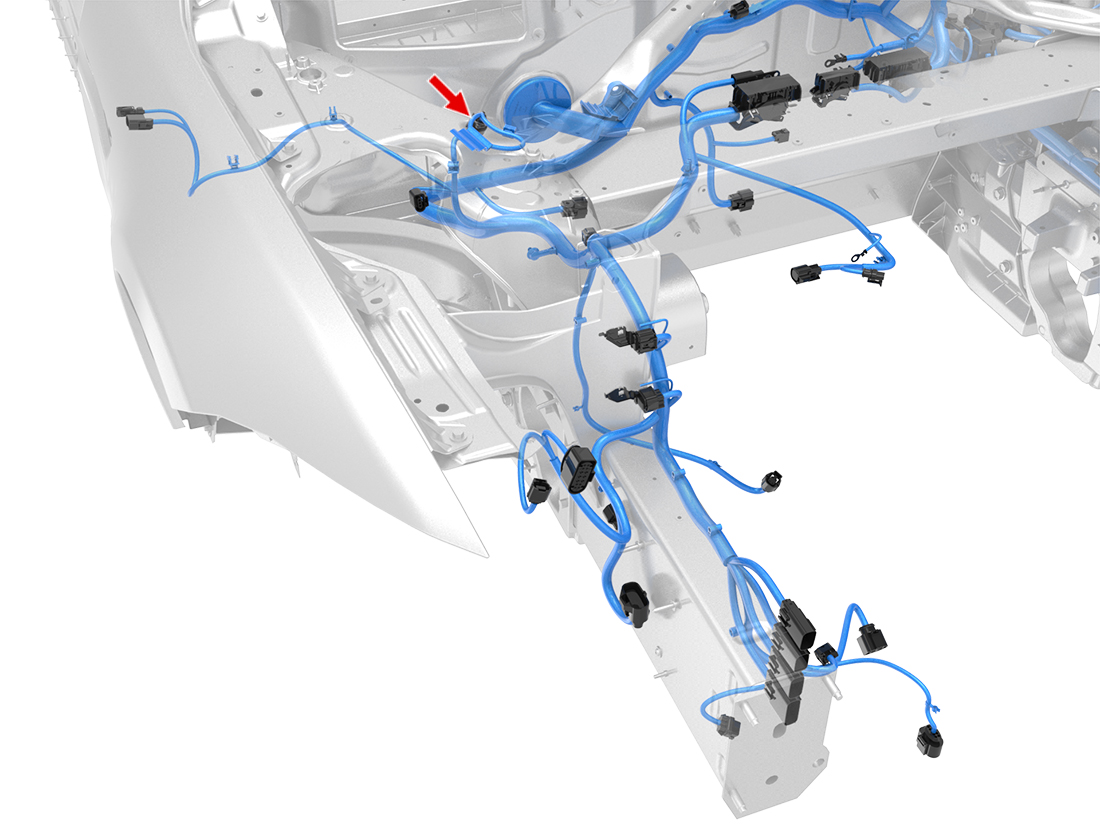

Location:

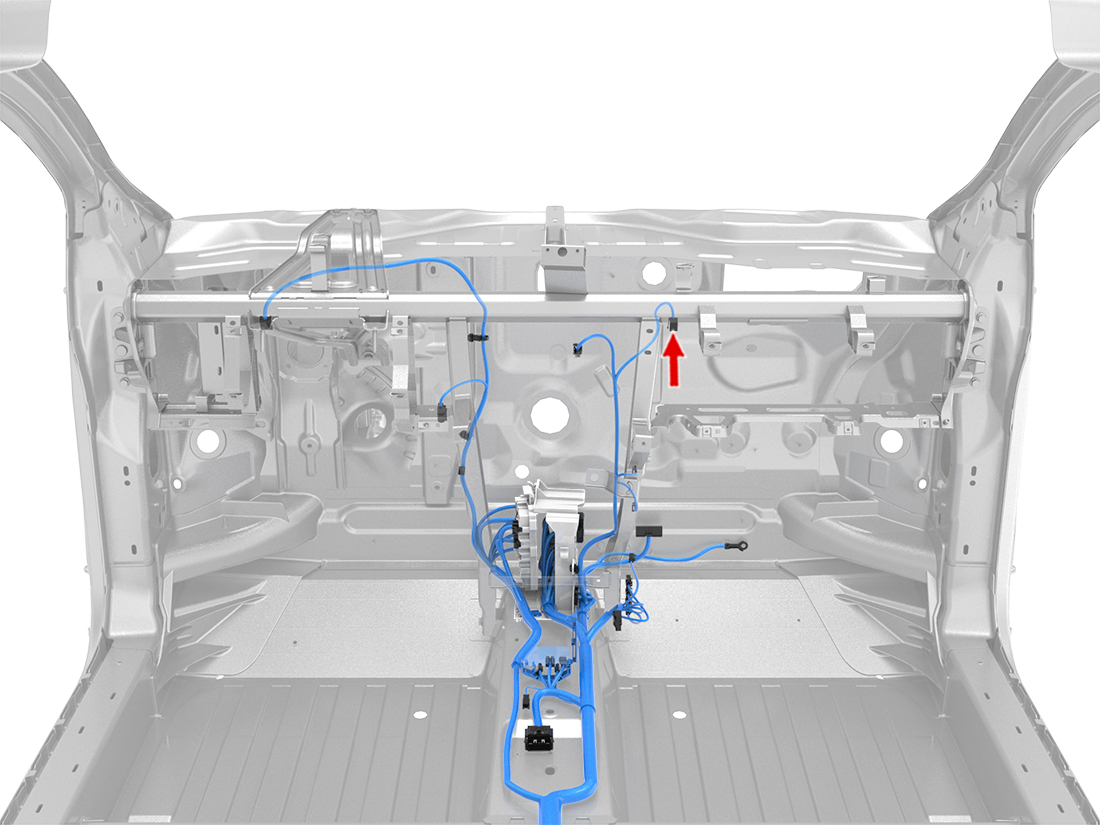

Location:
Connector Detail: AMP 172130-2
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Molex 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | X536-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 2 | GN | 1 | SN | X536-4 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 3 | RD | 1 | SN | X536-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | GN | 1 | SN | X536-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 2 | SN | X913M-1 | AMP 170032-5 | 1099441-00-A | ||
| 2 | BK | 2 | SN | GND_C-1 | AMP 170032-5 | 1099441-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | X536-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 2 | GN | 1 | SN | X536-4 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 3 | RD | 1 | SN | X536-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | GN | 1 | SN | X536-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
