X536A - s-rhd-sop10

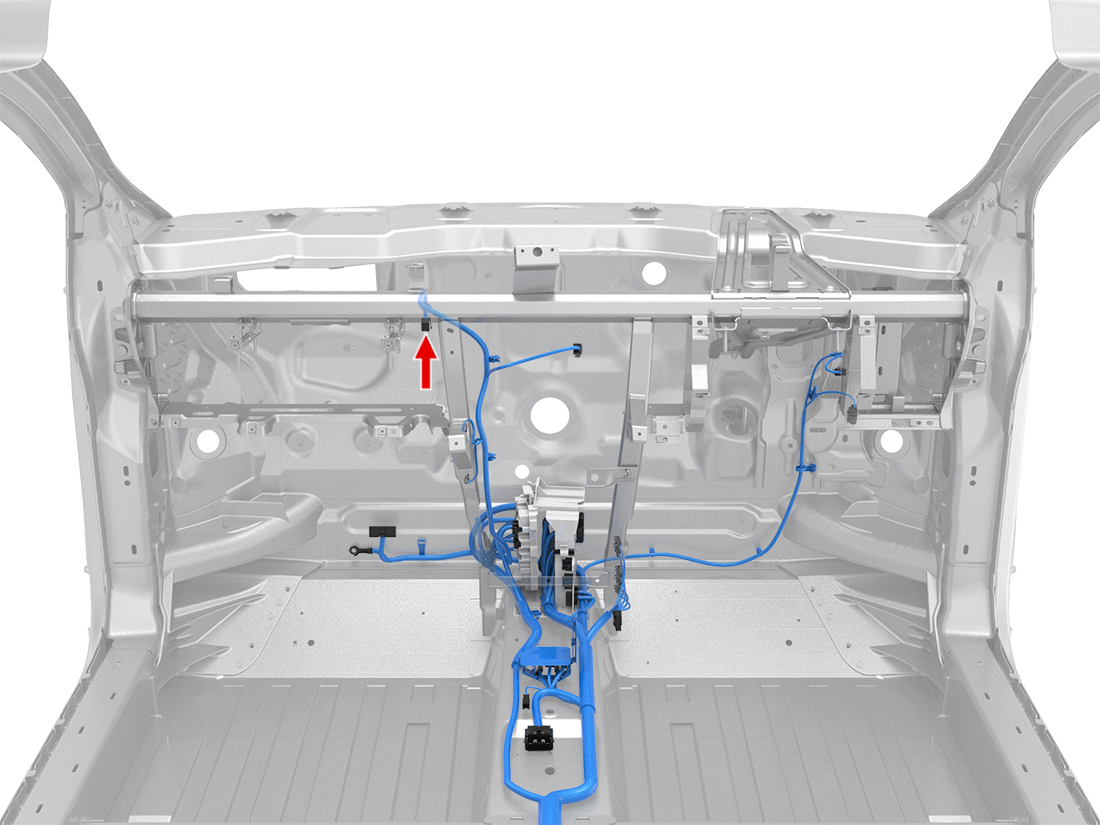

Location:
Connector Detail: AMP 172130-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 2 | SN | X913M-1 | AMP 170032-5 | 1099441-00-A | ||
| 2 | BK | 2 | SN | GND_C-1 | AMP 170032-5 | 1099441-00-A |
