X543 - s-rhd-sop10

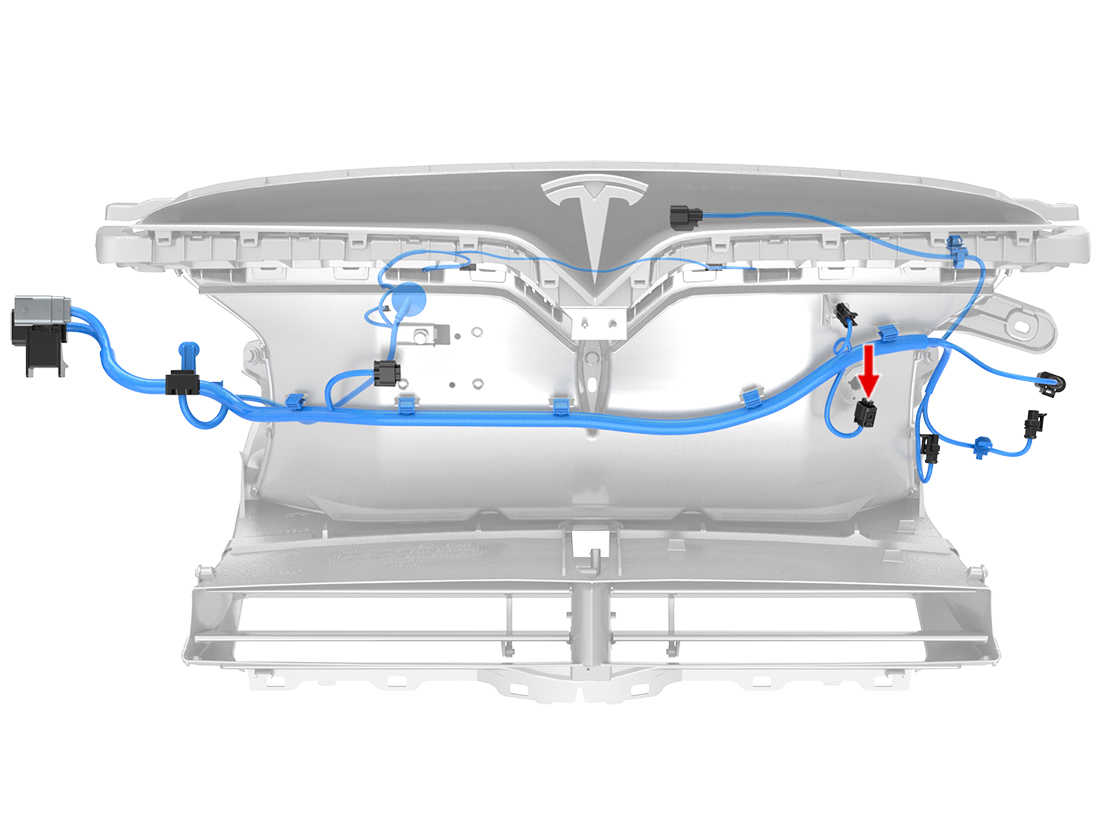

Location:
Location:
Connector Detail: AMP 2-967642-1
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1320-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/GY | 32 | SN | X501-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X906M-4 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 3 | GN/WH | 0.5 | SN | X906M-5 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X906M-4 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 2 | BK | 0.5 | SN | Z3-+GJRF106-R | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C | |
| 3 | GN/WH | 0.5 | SN | X906M-5 | AMP 5-965906-1 | AMP 967067-2 | 1099460-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/GY | 32 | SN | X501-1 | - |
