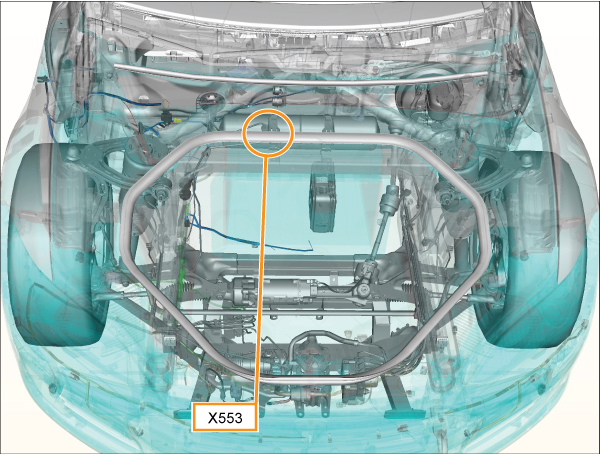

X553 - s-rhd-sop10
Location:
Location:
Connector Detail: AMP 1241634-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: KCRT1265-0202AA
Color:
Serviceability:
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BN | 4 | X117-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.13 | SN | X685-15 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | GN | 0.13 | SN | X685-16 | AMP 1355717-1 | 1099455-00-B | ||
| 3 | BU | 0.13 | SN | X685-5 | AMP 1355717-1 | 1099455-00-B | ||
| 4 | BK | 0.35 | SN | GND_C2-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.13 | SN | X685-15 | AMP 1355717-1 | 1099455-00-B | ||
| 2 | GN | 0.13 | SN | X685-16 | AMP 1355717-1 | 1099455-00-B | ||
| 3 | BU | 0.13 | SN | X685-5 | AMP 1355717-1 | 1099455-00-B | ||
| 4 | BK | 0.35 | SN | GND_C2-1 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BN | 4 | X117-1 | - |
