X560 - s-rhd-sop10

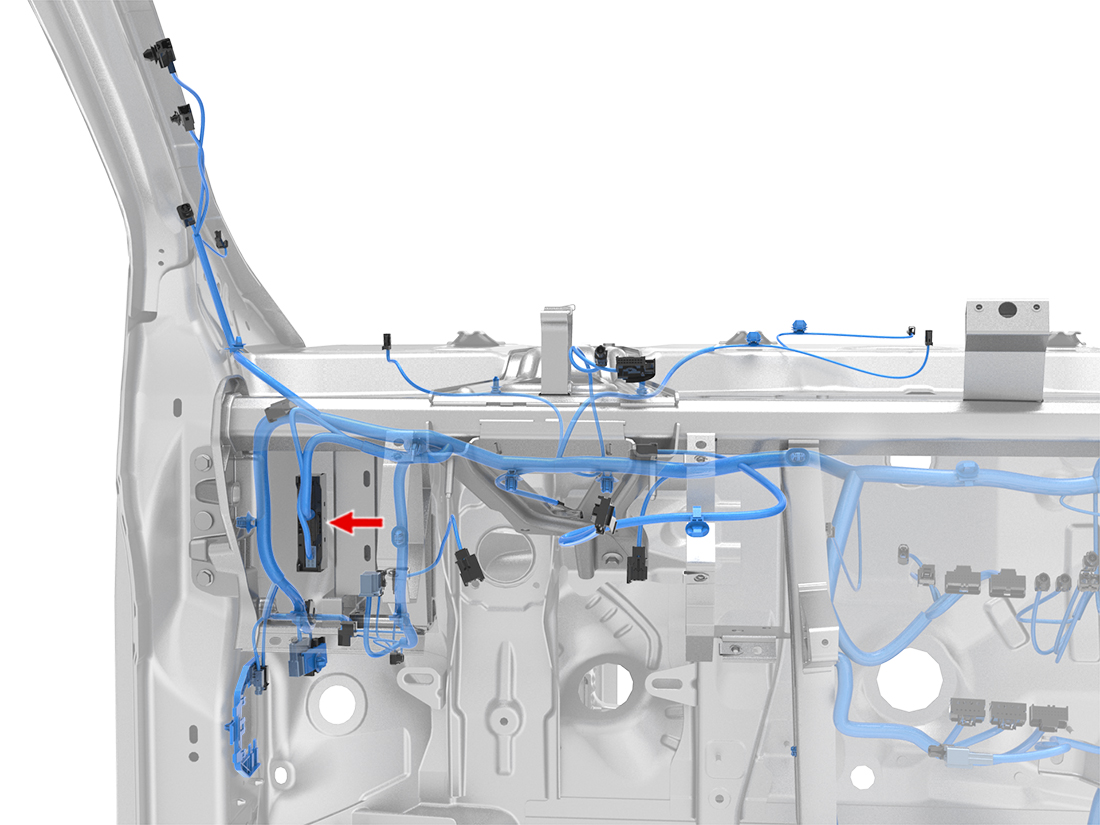

Location:
Location:
Connector Detail: AMP 1534180-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 1534180-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 1.5 | SN | X025-8 | AMP 1241404-1 | 1099430-00-A | ||
| 2 | BK/WH | 1.5 | SN | GND_IP_L-1 | AMP 1241404-1 | 1099430-00-A | ||
| 3 | BU/WH | 1 | SN | X920M-10 | AMP 1241388-1 | 1099429-00-A | ||
| 4 | GN/WH | 1 | SN | X922M-10 | AMP 1241388-1 | 1099429-00-A | ||
| 5 | BU | 1.5 | SN | X925F-1 | AMP 1241390-1 | 1099429-00-A | ||
| 6 | BU | 0.75 | SN | X925F-3 | AMP 1241374-1 | 1099427-00-A | ||
| 7 | BK | 0.75 | SN | X925F-6 | AMP 1241374-1 | 1099427-00-A | ||
| 11 | BU | 0.35 | SN | X173-4 | AMP 1564980-1 | 1099427-00-A | ||
| 12 | BN/WH | 0.35 | SN | X173-8 | AMP 1564980-1 | 1099427-00-A | ||
| 15 | BU | 1 | SN | X920M-18 | AMP 1241388-1 | 1099429-00-A | ||
| 16 | GN | 1 | SN | X922M-18 | AMP 1241388-1 | 1099429-00-A | ||
| 17 | BK | 1.5 | SN | X925F-2 | AMP 1241390-1 | 1099429-00-A | ||
| 18 | VT | 0.75 | SN | X925F-4 | AMP 1241374-1 | 1099427-00-A | ||
| 19 | GN | 0.75 | SN | X925F-5 | AMP 1241374-1 | 1099427-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/WH | 1.5 | SN | X025-8 | AMP 1241404-1 | 1099430-00-A | ||
| 2 | BK/WH | 1.5 | SN | GND_IP_R-1 | AMP 1241404-1 | 1099430-00-A | ||
| 3 | BU/WH | 1 | SN | X920M-10 | AMP 1241388-1 | 1099429-00-A | ||
| 4 | GN/WH | 1 | SN | X922M-10 | AMP 1241388-1 | 1099429-00-A | ||
| 5 | BU | 1.5 | SN | X925F-1 | AMP 1241390-1 | 1099429-00-A | ||
| 6 | BU | 0.75 | SN | X925F-3 | AMP 1241374-1 | 1099427-00-A | ||
| 7 | BK | 0.75 | SN | X925F-6 | AMP 1241374-1 | 1099427-00-A | ||
| 11 | BU | 0.35 | SN | X173-4 | AMP 1564980-1 | 1099427-00-A | ||
| 12 | BN/WH | 0.35 | SN | X173-8 | AMP 1564980-1 | 1099427-00-A | ||
| 15 | BU | 1 | SN | X920M-18 | AMP 1241388-1 | 1099429-00-A | ||
| 16 | GN | 1 | SN | X922M-18 | AMP 1241388-1 | 1099429-00-A | ||
| 17 | BK | 1.5 | SN | X925F-2 | AMP 1241390-1 | 1099429-00-A | ||
| 18 | VT | 0.75 | SN | X925F-4 | AMP 1241374-1 | 1099427-00-A | ||
| 19 | GN | 0.75 | SN | X925F-5 | AMP 1241374-1 | 1099427-00-A |
