X561 - s-rhd-sop10

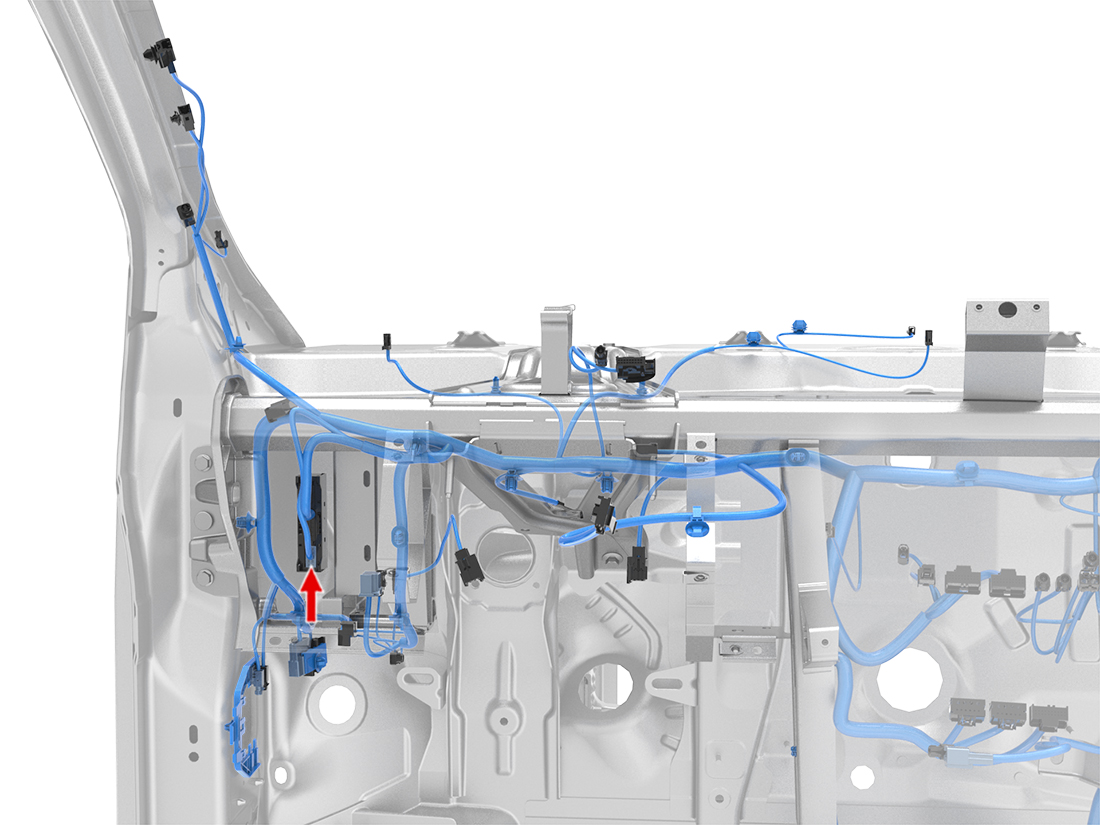

Location:

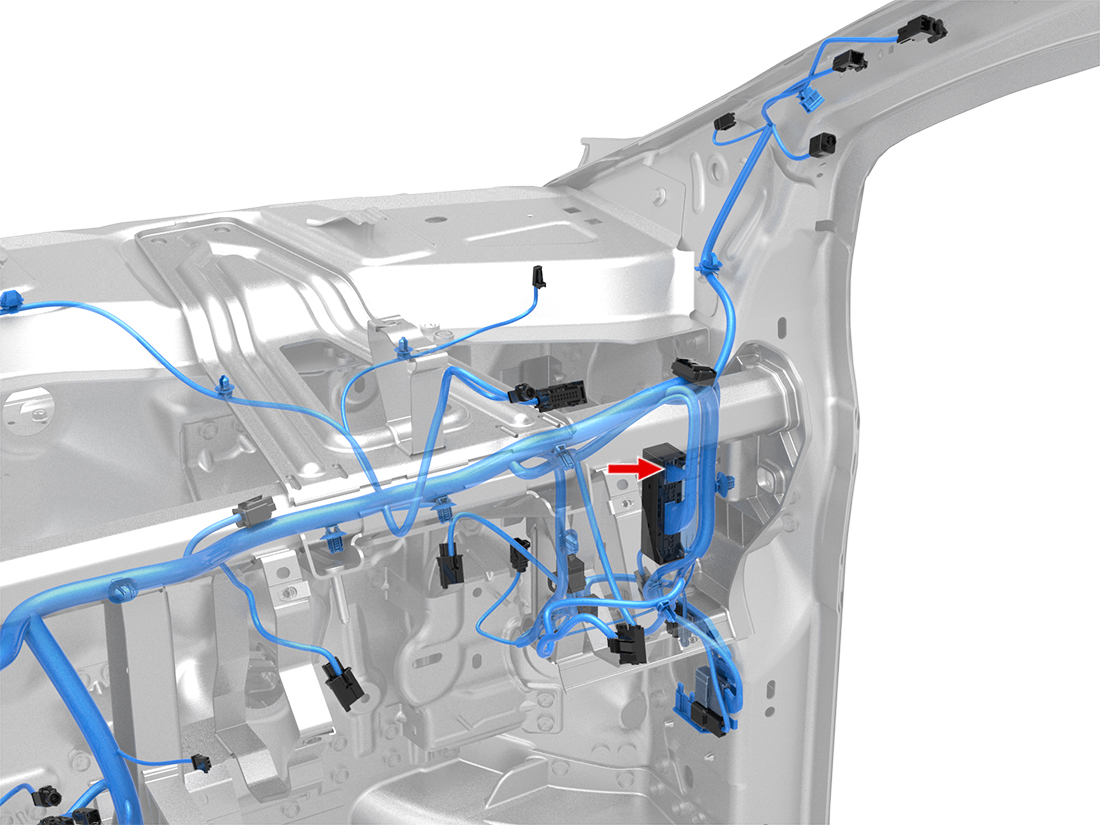

Location:
Location:
Connector Detail: DELPHI 13967689
Color:
Serviceability: Terminal Pigtail
Connector Detail: AMP 1534181-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 9 | RD/VT | 1.5 | SN | X106-25 | Delphi 13849935 | 1102101-00-B | ||
| 13 | RD/WH | 0.35 | SN | X106-28 | DELPHI 35031567 | 1099487-00-A | ||
| 14 | YE/WH | 0.5 | SN | X255-10 | DELPHI 35031567 | 1099487-00-A | ||
| 16 | RD | 0.35 | SN | X965M-1 | DELPHI 35031567 | 1099487-00-A | ||
| 17 | RD/BU | 0.5 | SN | X958M-2 | Delphi 13849933 | 1102099-00-B | ||
| 18 | RD/GY | 2 | SN | X979M-7 | Delphi 13849936 | 1102101-00-B | ||
| 26 | VT | 1 | SN | X076-1 | Delphi 13849934 | 1099490-00-A | ||
| 31 | RD/GY | 1 | SN | X078A-1 | DELPHI 35031566 | 1099488-00-A | ||
| 32 | RD/BU | 0.35 | SN | X487-3 | DELPHI 35031567 | 1099487-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 23 | GY | 0.35 | SN | X173-1 | AMP 1564980-1 | 1099427-00-A | ||
| 24 | BU/WH | 0.35 | SN | X173-3 | AMP 1564980-1 | 1099427-00-A | ||
| 25 | RD/WH | 0.35 | SN | X173-5 | AMP 1564980-1 | 1099427-00-A | ||
| 26 | WH | 0.35 | SN | X173-7 | AMP 1564980-1 | 1099427-00-A | ||
| 27 | GN/WH | 0.35 | SN | X173-9 | AMP 1564980-1 | 1099427-00-A | ||
| 28 | BN | 0.35 | SN | X173-11 | AMP 1564980-1 | 1099427-00-A | ||
| 29 | BU | 0.35 | SN | X173-13 | AMP 1564980-1 | 1099427-00-A | ||
| 30 | RD | 0.35 | SN | X173-15 | AMP 1564980-1 | 1099427-00-A | ||
| 31 | BK | 0.35 | SN | X173-17 | AMP 1564980-1 | 1099427-00-A | ||
| 32 | GN | 0.35 | SN | X173-19 | AMP 1564980-1 | 1099427-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 23 | GY | 0.35 | SN | X173-1 | AMP 1564980-1 | 1099427-00-A | ||
| 24 | BU/WH | 0.35 | SN | X173-3 | AMP 1564980-1 | 1099427-00-A | ||
| 25 | RD/WH | 0.35 | SN | X173-5 | AMP 1564980-1 | 1099427-00-A | ||
| 26 | WH | 0.35 | SN | X173-7 | AMP 1564980-1 | 1099427-00-A | ||
| 27 | GN/WH | 0.35 | SN | X173-9 | AMP 1564980-1 | 1099427-00-A | ||
| 28 | BN | 0.35 | SN | X173-11 | AMP 1564980-1 | 1099427-00-A | ||
| 29 | BU | 0.35 | SN | X173-13 | AMP 1564980-1 | 1099427-00-A | ||
| 30 | RD | 0.35 | SN | X173-15 | AMP 1564980-1 | 1099427-00-A | ||
| 31 | BK | 0.35 | SN | X173-17 | AMP 1564980-1 | 1099427-00-A | ||
| 32 | GN | 0.35 | SN | X173-19 | AMP 1564980-1 | 1099427-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 9 | RD/VT | 1.5 | SN | X106-25 | Delphi 13849935 | 1102101-00-B | ||
| 13 | RD/WH | 0.35 | SN | X106-28 | DELPHI 35031567 | 1099487-00-A | ||
| 14 | YE/WH | 0.5 | SN | X255-10 | DELPHI 35031567 | 1099487-00-A | ||
| 16 | RD | 0.35 | SN | X965M-1 | DELPHI 35031567 | 1099487-00-A | ||
| 17 | RD/BU | 0.5 | SN | X958M-2 | Delphi 13849933 | 1102099-00-B | ||
| 18 | RD/GY | 2 | SN | X979M-7 | Delphi 13849936 | 1102101-00-B | ||
| 26 | VT | 1 | SN | X076-1 | Delphi 13849934 | 1099490-00-A | ||
| 31 | RD/GY | 1 | SN | X078A-1 | DELPHI 35031566 | 1099488-00-A | ||
| 32 | RD/BU | 0.35 | SN | X487-3 | DELPHI 35031567 | 1099487-00-A |
