X562 - s-rhd-sop10

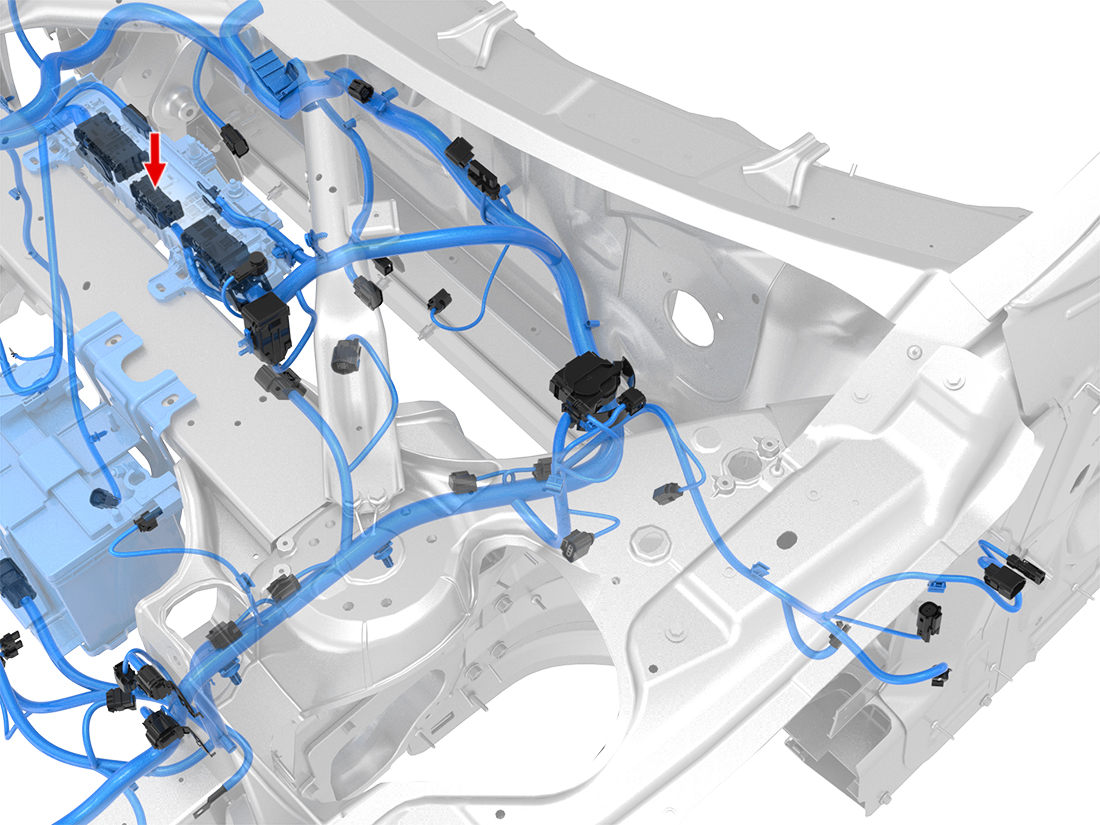

Location:

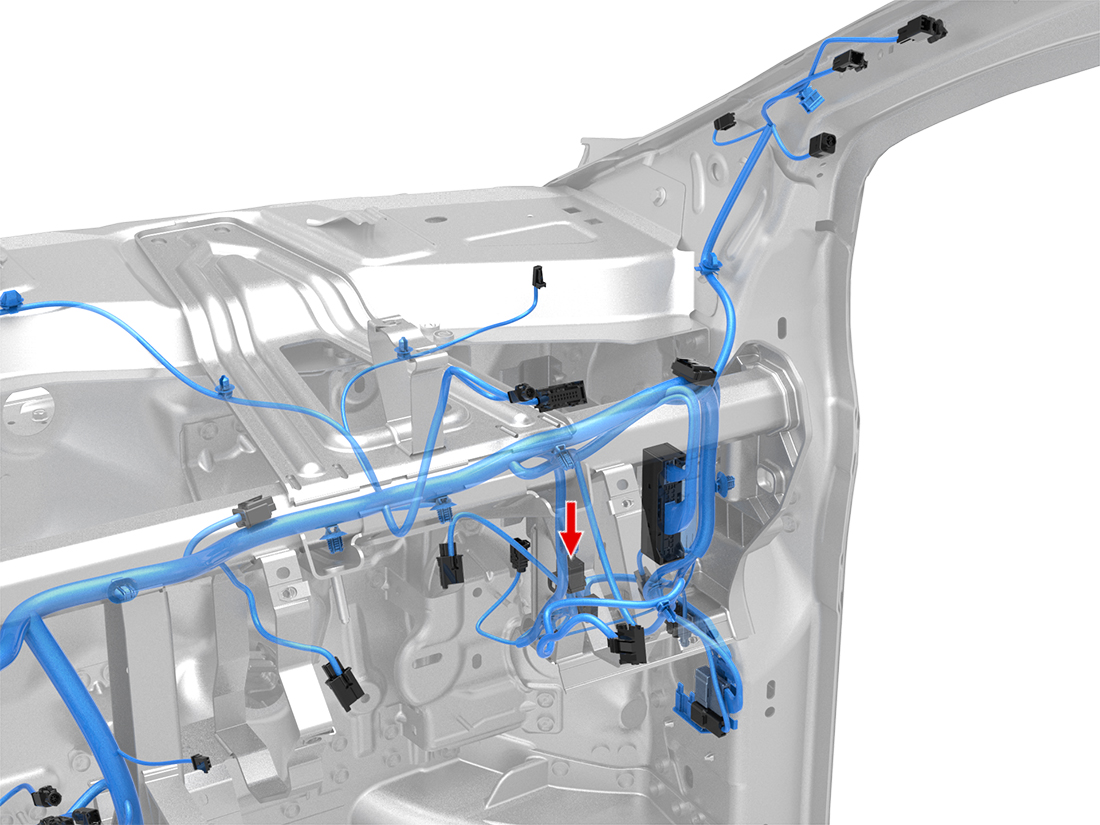

Location:
Location:
Connector Detail: Delphi 15547108
Color:
Serviceability: Terminal Pigtail
Connector Detail: Delphi 33167783
Color:
Serviceability: Terminal Pigtail
Connector Detail: Molex 34729-0160
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.75 | SN | X581-8 | Delphi 13849934 | 1099490-00-A | ||
| 6 | RD/WH | 1 | SN | X027-6 | DELPHI 35031566 | 1099488-00-A | ||
| 7 | RD/BU | 0.5 | SN | X050-1 | Delphi 13849933 | 1102099-00-B | ||
| 8 | RD/BU | 0.5 | SN | X050-11 | DELPHI 35031567 | 1099487-00-A | ||
| 9 | RD/WH | 0.5 | SN | X581-2 | DELPHI 35031567 | 1099487-00-A | ||
| 11 | RD/GN | 2 | SN | X953F-1 | Delphi 13849936 | 1102101-00-B | ||
| 12 | RD/WH | 0.75 | SN | Z2-+PDR07_A-L | DELPHI 35031566 | 1099488-00-A | ||
| 13 | RD/WH | 0.35 | SN | X050-2 | DELPHI 35031567 | 1099487-00-A | ||
| 14 | RD/WH | 0.35 | SN | X581-16 | Delphi 13849933 | 1102099-00-B | ||
| 16 | RD/BU | 0.5 | SN | X581-5 | DELPHI 35031567 | 1099487-00-A | ||
| 18 | RD | 0.75 | SN | X535-1 | DELPHI 35031566 | 1099488-00-A | ||
| 19 | RD/VT | 0.35 | SN | X581-3 | DELPHI 35031567 | 1099487-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X026-14 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | SI | 0.35 | SN | X170-19 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | GY | 0.35 | SN | X170-20 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | GY/WH | 0.35 | SN | X170-10 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | BK | 0.5 | SN | GND_IP_L-1 | Molex 34803-3212 | 1099525-00-C | ||
| 10 | BN/WH | 0.35 | SN | X728-3 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | BN | 0.35 | SN | X728-14 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | SI | 0.35 | SN | X170-9 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GN | 0.35 | SN | X170-18 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X170-8 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BK | 0.5 | SN | GND_IP_L-1 | Molex 34803-3212 | 1099525-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.35 | SN | X026-14 | Molex 34803-3211 | 1099524-00-A | ||
| 5 | SI | 0.35 | SN | X170-19 | Molex 34803-3211 | 1099524-00-A | ||
| 6 | GY | 0.35 | SN | X170-20 | Molex 34803-3211 | 1099524-00-A | ||
| 7 | GY/WH | 0.35 | SN | X170-10 | Molex 34803-3211 | 1099524-00-A | ||
| 8 | BK | 0.5 | SN | GND_IP_R-1 | Molex 34803-3212 | 1099525-00-C | ||
| 10 | BN/WH | 0.35 | SN | X728-3 | Molex 34803-3211 | 1099524-00-A | ||
| 11 | BN | 0.35 | SN | X728-14 | Molex 34803-3211 | 1099524-00-A | ||
| 13 | SI | 0.35 | SN | X170-9 | Molex 34803-3211 | 1099524-00-A | ||
| 14 | GN | 0.35 | SN | X170-18 | Molex 34803-3211 | 1099524-00-A | ||
| 15 | GN/WH | 0.35 | SN | X170-8 | Molex 34803-3211 | 1099524-00-A | ||
| 16 | BK | 0.5 | SN | GND_IP_R-1 | Molex 34803-3212 | 1099525-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.75 | SN | X581-8 | Delphi 13849934 | 1099490-00-A | ||
| 6 | RD/WH | 1 | SN | X027-6 | DELPHI 35031566 | 1099488-00-A | ||
| 7 | RD/BU | 0.5 | SN | X050-1 | Delphi 13849933 | 1102099-00-B | ||
| 8 | RD/BU | 0.5 | SN | X050-11 | DELPHI 35031567 | 1099487-00-A | ||
| 9 | RD/WH | 0.5 | SN | X581-2 | DELPHI 35031567 | 1099487-00-A | ||
| 11 | RD/GN | 2 | SN | X953F-1 | Delphi 13849936 | 1102101-00-B | ||
| 12 | RD/WH | 0.75 | SN | Z2-+PDR07_A-L | DELPHI 35031566 | 1099488-00-A | ||
| 13 | RD/WH | 0.35 | SN | X050-2 | DELPHI 35031567 | 1099487-00-A | ||
| 14 | RD/WH | 0.35 | SN | X581-16 | Delphi 13849933 | 1102099-00-B | ||
| 16 | RD/BU | 0.5 | SN | X581-5 | DELPHI 35031567 | 1099487-00-A | ||
| 18 | RD | 0.75 | SN | X535-1 | DELPHI 35031566 | 1099488-00-A | ||
| 19 | RD/VT | 0.35 | SN | X581-3 | DELPHI 35031567 | 1099487-00-A |
