X565 - s-rhd-sop10

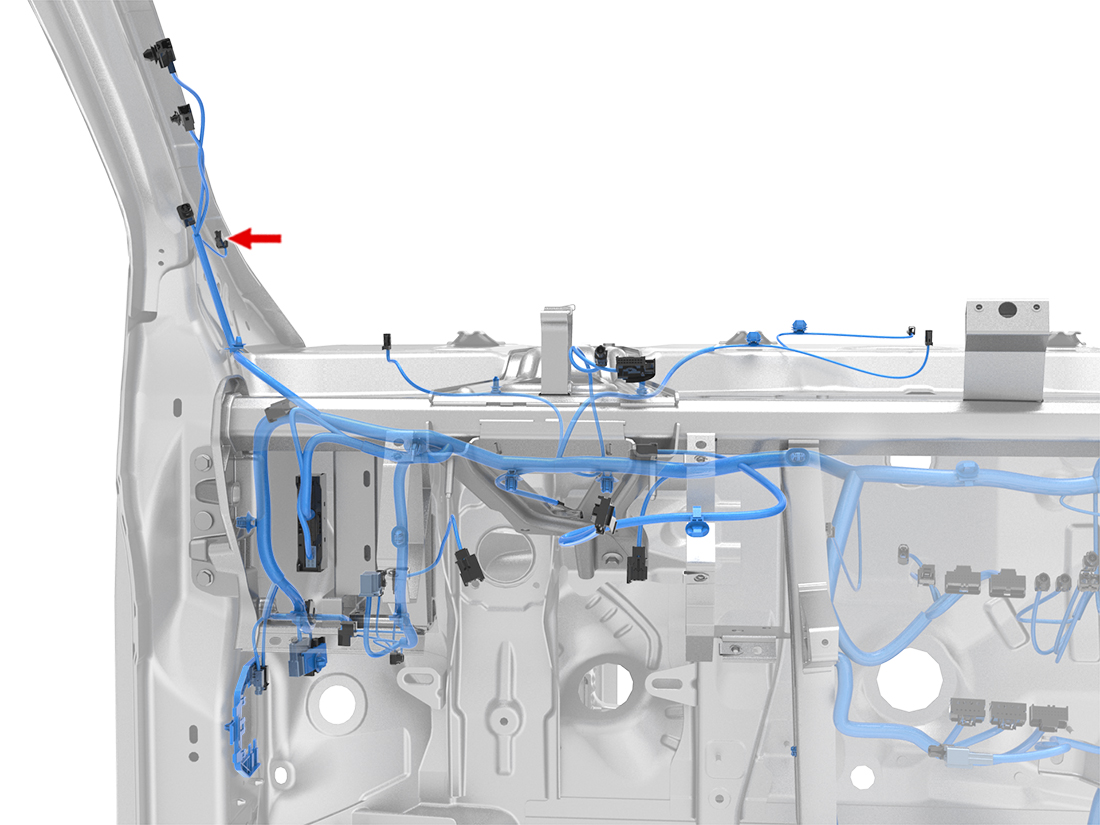

Location:
Connector Detail: Sumitomo 6098-6053
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/WH | 0.35 | SN | X174-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | WH | 0.35 | SN | X174-4 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/WH | 0.35 | SN | X174-3 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | WH | 0.35 | SN | X174-4 | Sumitomo 8240-0215 | 1099541-00-A |
