X575 - s-rhd-sop10

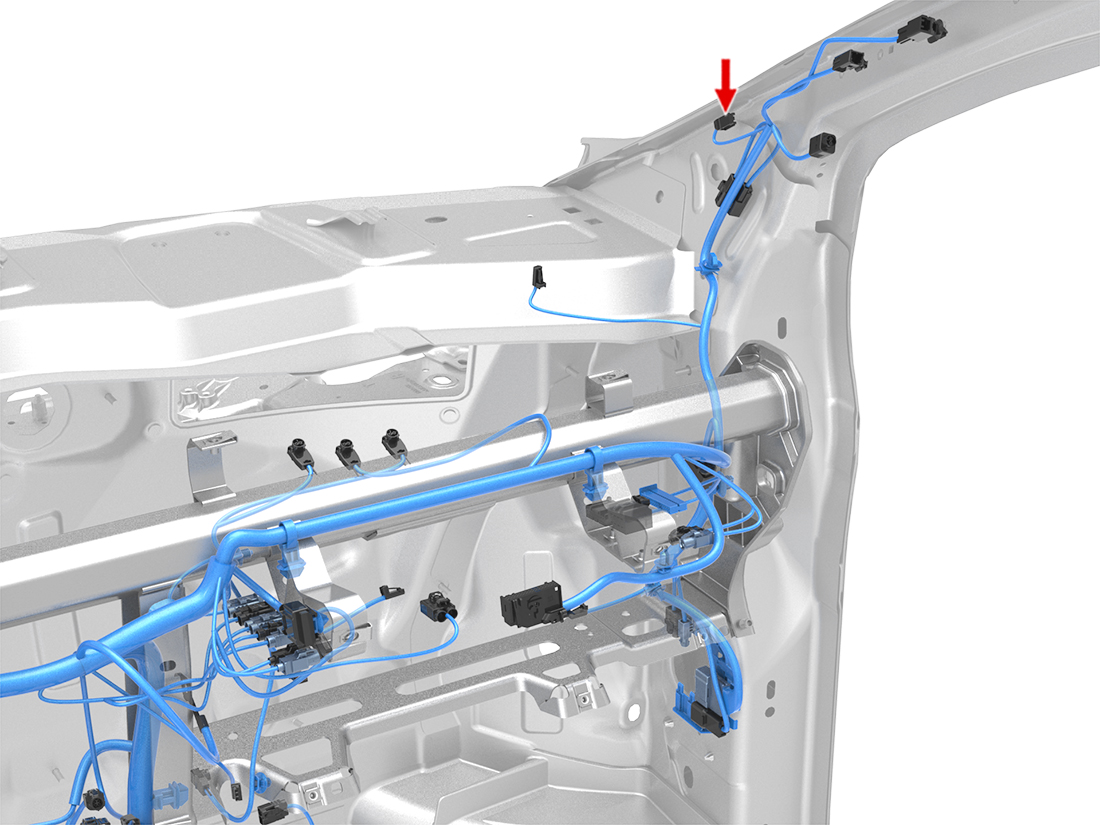

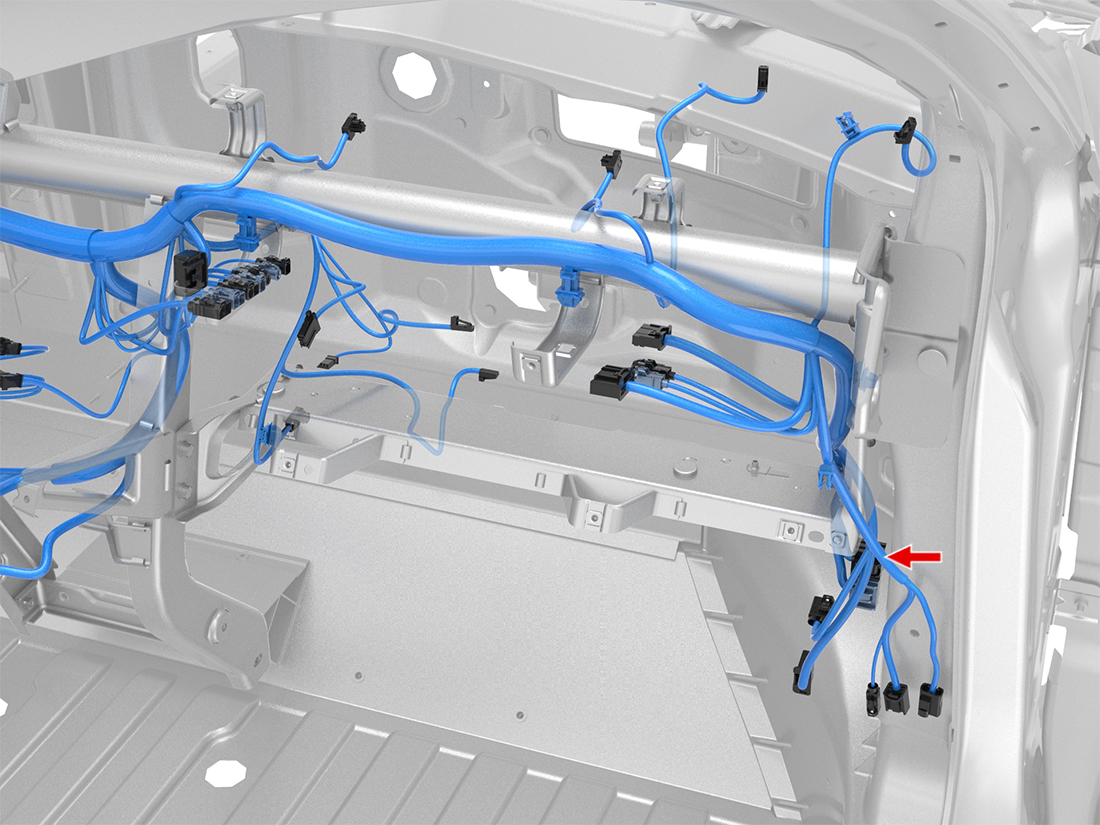

Location:
Location:
Connector Detail: Delphi 13799638
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-6053
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 0.5 | SN | X426-7 | Delphi 13544535 | 1099482-00-A | ||
| 5 | BU | 2 | SN | X149-9 | Delphi 13544537 | 1099486-00-A | ||
| 6 | RD/GN | 1.5 | SN | X425-7 | Delphi 13544537 | 1099486-00-A | ||
| 7 | RD | 0.5 | SN | X160-6 | Delphi 13544535 | 1099482-00-A | ||
| 8 | RD/WH | 1.5 | SN | X423-1 | Delphi 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X174-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | BN | 0.35 | SN | X174-2 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X174-1 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | BN | 0.35 | SN | X174-2 | Sumitomo 8240-0215 | 1099541-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 0.5 | SN | X426-7 | Delphi 13544535 | 1099482-00-A | ||
| 5 | BU | 2 | SN | X149-9 | Delphi 13544537 | 1099486-00-A | ||
| 6 | RD/GN | 1.5 | SN | X425-7 | Delphi 13544537 | 1099486-00-A | ||
| 7 | RD | 0.5 | SN | X160-6 | Delphi 13544535 | 1099482-00-A | ||
| 8 | RD/WH | 1.5 | SN | X423-1 | Delphi 13544537 | 1099486-00-A |
