X576 - s-rhd-sop10

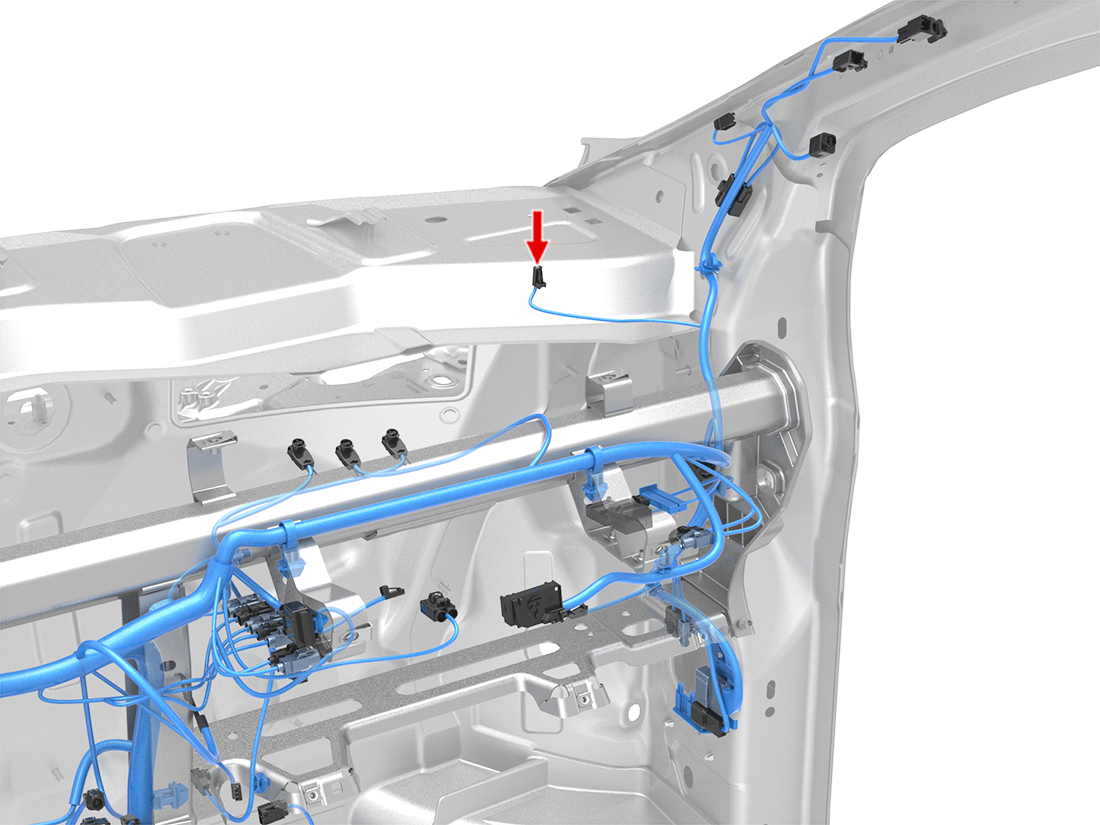

Location:
Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Delphi 13520383
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X429-13 | Delphi 13526680 | 1099481-00-A | ||
| 2 | GN/RD | 0.35 | SN | X968M-17 | Delphi 13526680 | 1099481-00-A | ||
| 3 | RD/BK | 0.35 | SN | X968M-16 | Delphi 13526680 | 1099481-00-A | ||
| 4 | RD/WH | 0.5 | SN | X430-12 | Delphi 13526680 | 1099481-00-A | ||
| 5 | GY | 0.35 | SN | X492-3 | Delphi 13526680 | 1099481-00-A | ||
| 6 | RD/BU | 0.35 | SN | X968M-7 | Delphi 13526680 | 1099481-00-A | ||
| 7 | RD/VT | 0.35 | SN | X434-17 | Delphi 13526680 | 1099481-00-A | ||
| 8 | RD/VT | 0.35 | SN | X958F-1 | Delphi 13526680 | 1099481-00-A | ||
| 9 | WH/BU | 0.35 | SN | X430-13 | Delphi 13526680 | 1099481-00-A | ||
| 10 | BU/WH | 0.35 | SN | X281-1 | Delphi 13526680 | 1099481-00-A | ||
| 11 | BU/WH | 0.35 | SN | X280-1 | Delphi 13526680 | 1099481-00-A | ||
| 12 | BU/WH | 0.35 | SN | X429-1 | Delphi 13526680 | 1099481-00-A | ||
| 13 | RD | 0.5 | SN | Z1-+PRM13_B-L | Delphi 13526680 | 1099481-00-A | ||
| 14 | RD/GN | 0.35 | SN | X440-1 | Delphi 13526680 | 1099481-00-A | ||
| 15 | BU | 0.35 | SN | X430-3 | Delphi 13526680 | 1099481-00-A | ||
| 16 | RD/GY | 0.35 | SN | X160-4 | Delphi 13526680 | 1099481-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/WH | 0.35 | SN | X175-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X175-2 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/WH | 0.35 | SN | X175-1 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | BU | 0.35 | SN | X175-2 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X429-13 | Delphi 13526680 | 1099481-00-A | ||
| 2 | GN/RD | 0.35 | SN | X968M-17 | Delphi 13526680 | 1099481-00-A | ||
| 3 | RD/BK | 0.35 | SN | X968M-16 | Delphi 13526680 | 1099481-00-A | ||
| 4 | RD/WH | 0.5 | SN | X430-12 | Delphi 13526680 | 1099481-00-A | ||
| 5 | GY | 0.35 | SN | X492-3 | Delphi 13526680 | 1099481-00-A | ||
| 6 | RD/BU | 0.35 | SN | X968M-7 | Delphi 13526680 | 1099481-00-A | ||
| 7 | RD/VT | 0.35 | SN | X434-17 | Delphi 13526680 | 1099481-00-A | ||
| 8 | RD/VT | 0.35 | SN | X958F-1 | Delphi 13526680 | 1099481-00-A | ||
| 9 | WH/BU | 0.35 | SN | X430-13 | Delphi 13526680 | 1099481-00-A | ||
| 10 | BU/WH | 0.35 | SN | X281-1 | Delphi 13526680 | 1099481-00-A | ||
| 11 | BU/WH | 0.35 | SN | X280-1 | Delphi 13526680 | 1099481-00-A | ||
| 12 | BU/WH | 0.35 | SN | X429-1 | Delphi 13526680 | 1099481-00-A | ||
| 13 | RD | 0.5 | SN | Z1-+PRM13_B-R | Delphi 13526680 | 1099481-00-A | ||
| 14 | RD/GN | 0.35 | SN | X440-1 | Delphi 13526680 | 1099481-00-A | ||
| 15 | BU | 0.35 | SN | X430-3 | Delphi 13526680 | 1099481-00-A | ||
| 16 | RD/GY | 0.35 | SN | X160-4 | Delphi 13526680 | 1099481-00-A |
