X591 - s-rhd-sop10

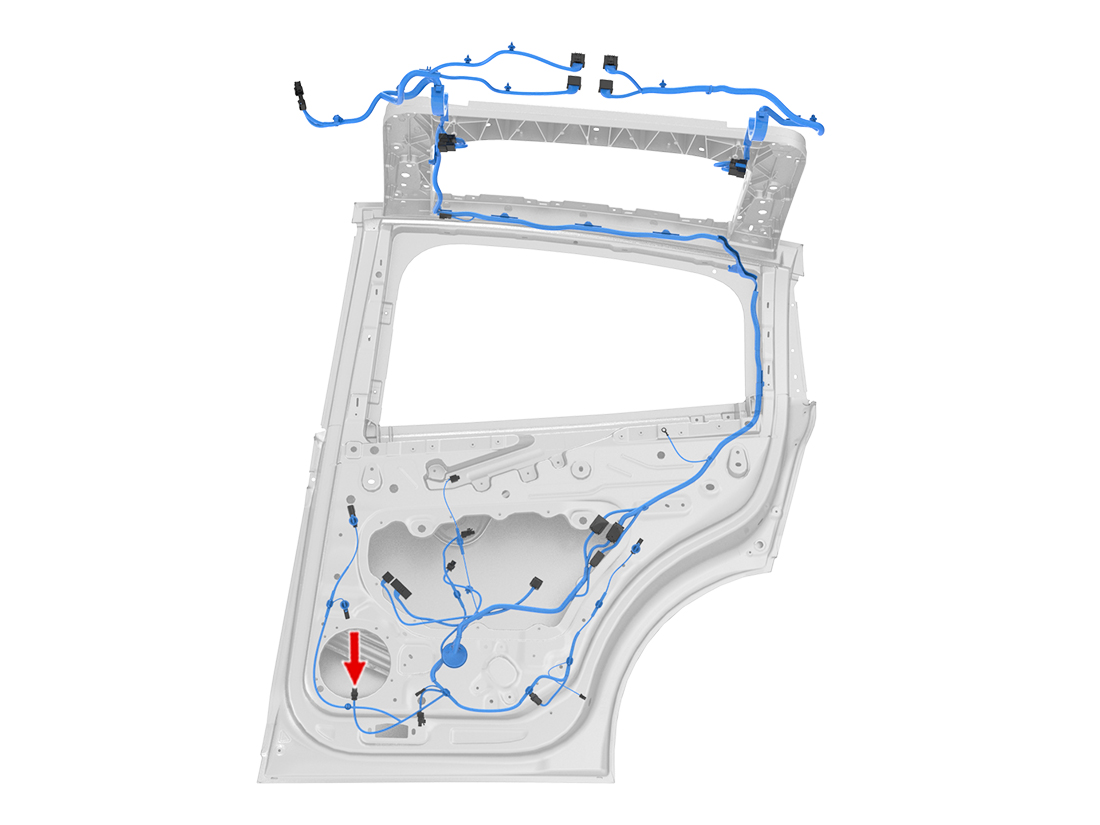

Location:
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | GND_JC_RRD_F-1 | AMP 282110-1 | AMP 281934-2 | 1116629-00-A | |
| 2 | BU | 1 | SN | GND_JC_RRD_F-4 | AMP 282110-1 | AMP 281934-2 | 1116629-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | GND_JC_RRD_F-1 | AMP 282110-1 | AMP 281934-2 | 1116629-00-A | |
| 2 | BU | 1 | SN | GND_JC_RRD_F-4 | AMP 282110-1 | AMP 281934-2 | 1116629-00-A |
