X593 - s-rhd-sop10

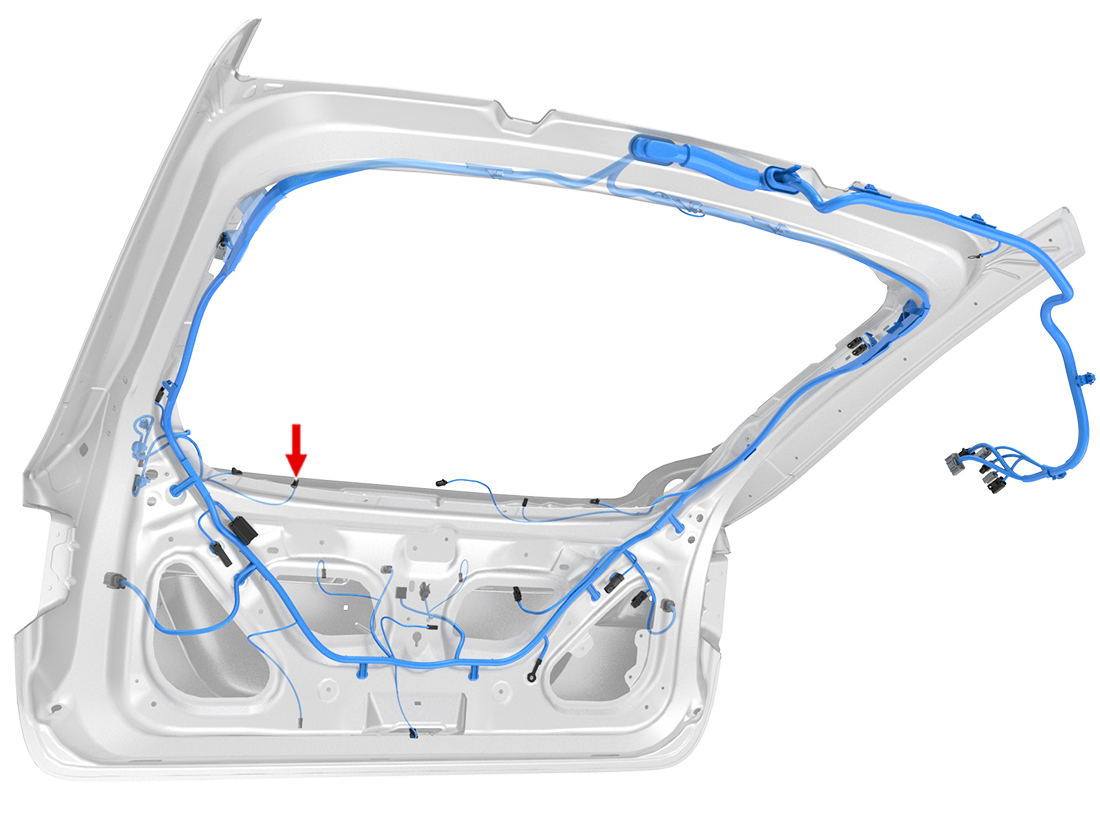

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.75 | SN | X790-5 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | X790-11 | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.75 | SN | X790-5 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.75 | SN | X790-11 | AMP 5-963715-1 | 1099458-00-A |
