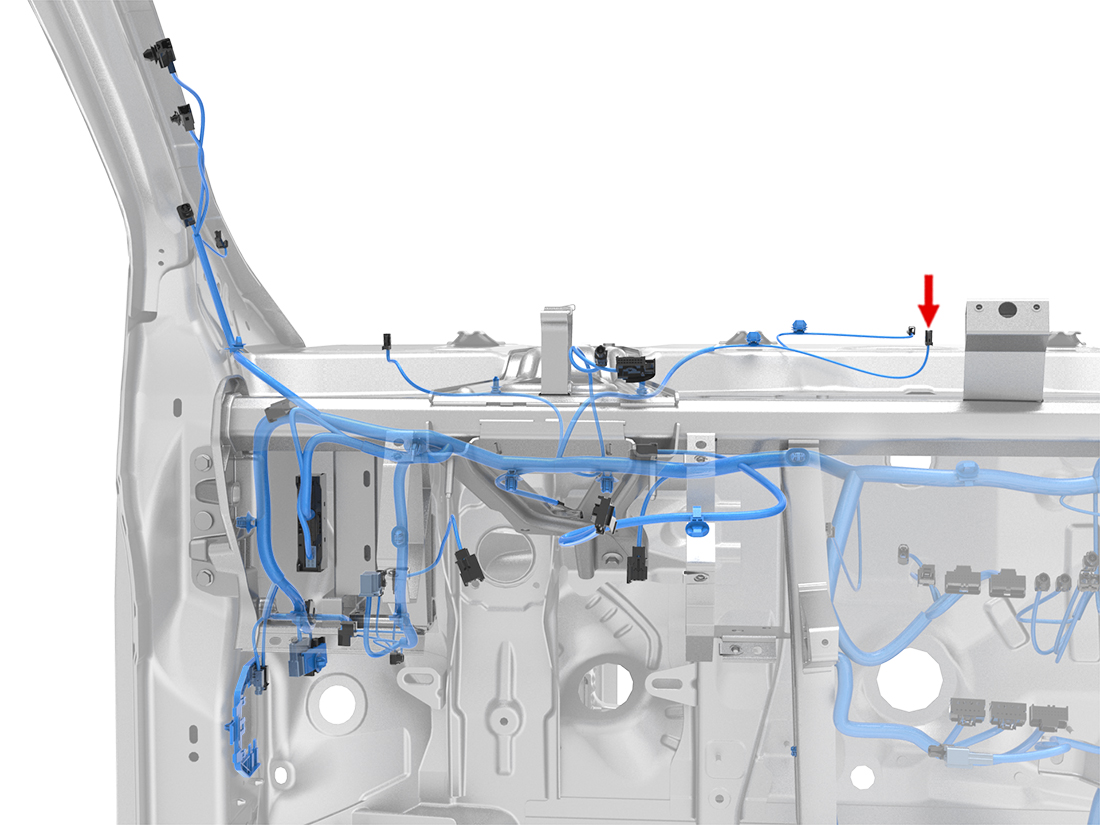

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X120A-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 1 | BK/WH | 0.75 | SN | Z1-+AUD29_A-L | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | WH | 0.75 | SN | X120A-11 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | WH | 0.75 | SN | Z2-+AUD30_A-L | AMP 5-963715-1 | | 1099458-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X120A-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 1 | BK/WH | 0.75 | SN | Z1-+AUD29_A-R | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | WH | 0.75 | SN | X120A-11 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | WH | 0.75 | SN | Z2-+AUD30_A-R | AMP 5-963715-1 | | 1099458-00-A | |
