X600 - s-rhd-sop10

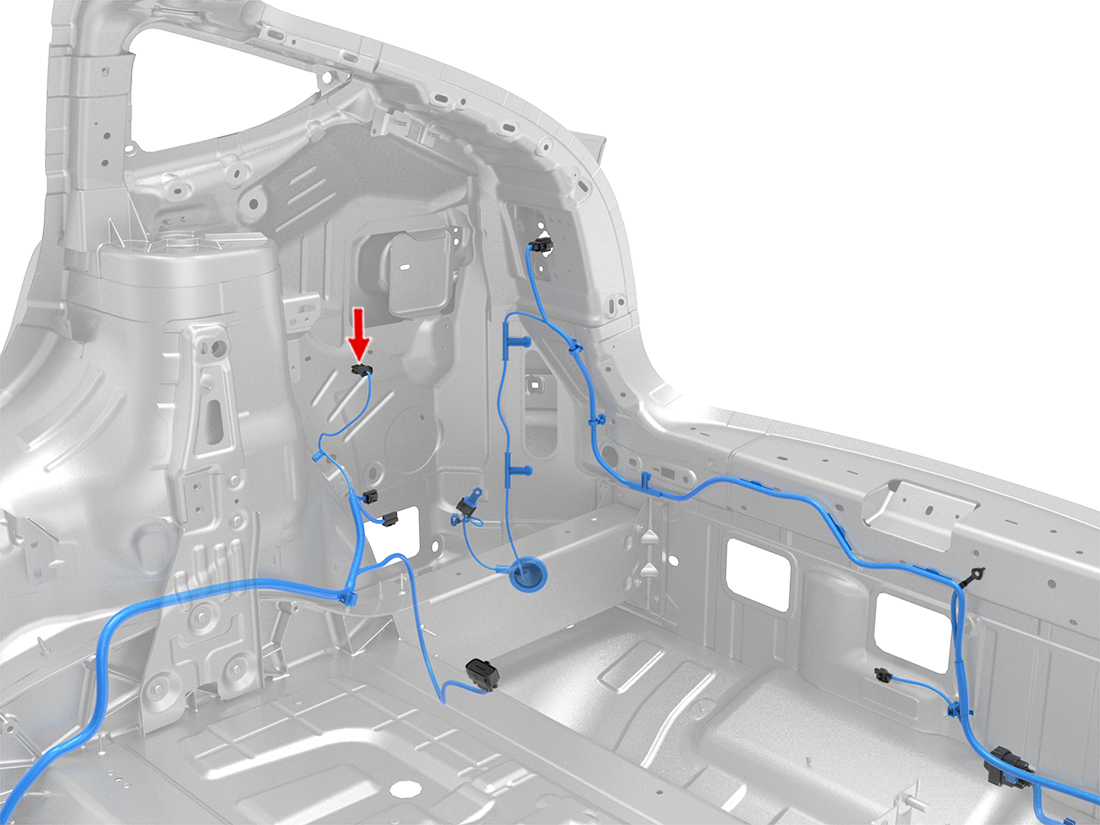

Location:
Connector Detail: MOLEX 34796-0401
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X925M-1 | MOLEX 33012-3021 | 1099519-00-A | ||
| 2 | BK | 1.5 | SN | X925M-2 | MOLEX 33012-3021 | 1099519-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X925M-1 | MOLEX 33012-3021 | 1099519-00-A | ||
| 2 | BK | 1.5 | SN | X925M-2 | MOLEX 33012-3021 | 1099519-00-A |
