X617 - s-rhd-sop10

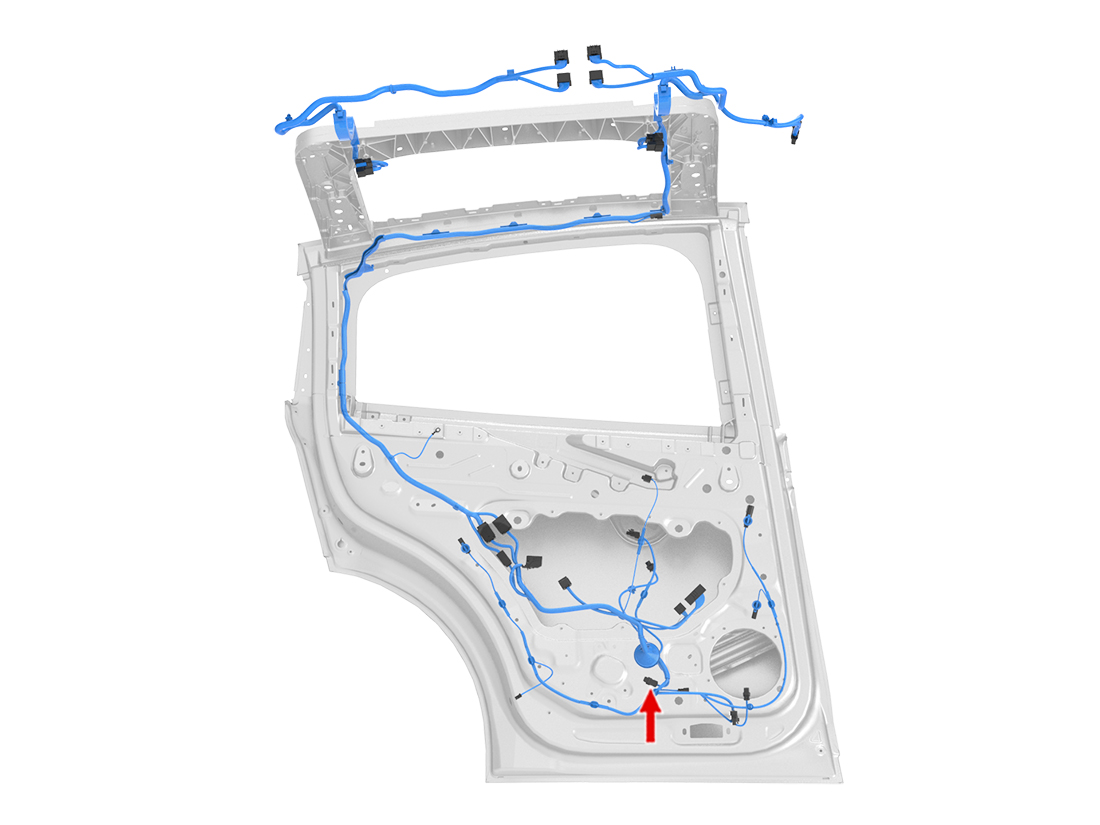

Location:
Connector Detail: FCI 211PC022S0049
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | SN | X421-40 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | GY/WH | 0.5 | SN | X421-39 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/BK | 0.5 | SN | X421-40 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A | |
| 2 | GY/WH | 0.5 | SN | X421-39 | FCI 211CC2S1160P | Tesla MAT-140-280 | 1099491-00-A |
