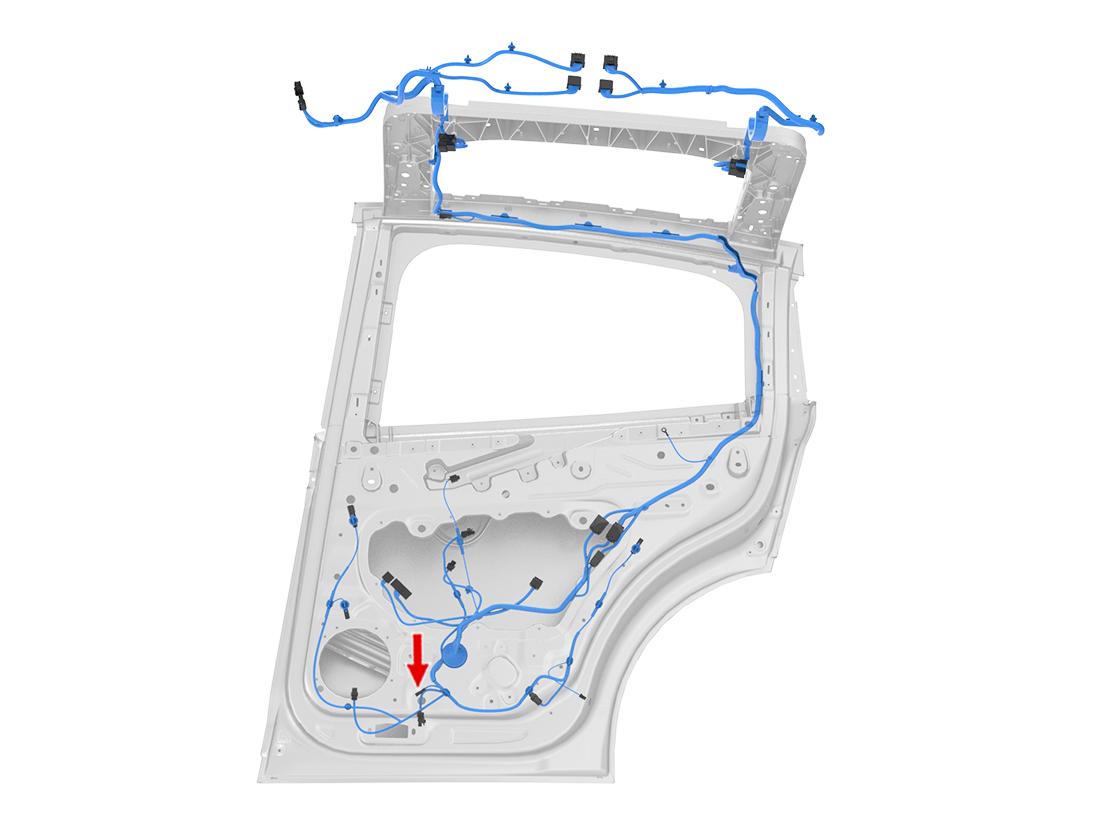

Location:
Connector Detail: JST 04T-JWPF-VSLE-S
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GY/WH | 0.35 | SN | X974F-20 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
| 3 | GY | 0.35 | SN | X974F-13 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GY/WH | 0.35 | SN | X974F-20 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
| 3 | GY | 0.35 | SN | X974F-13 | JST SWPT-001T-P025 | Tesla MAT-120-170 | 1108350-00-C | |
