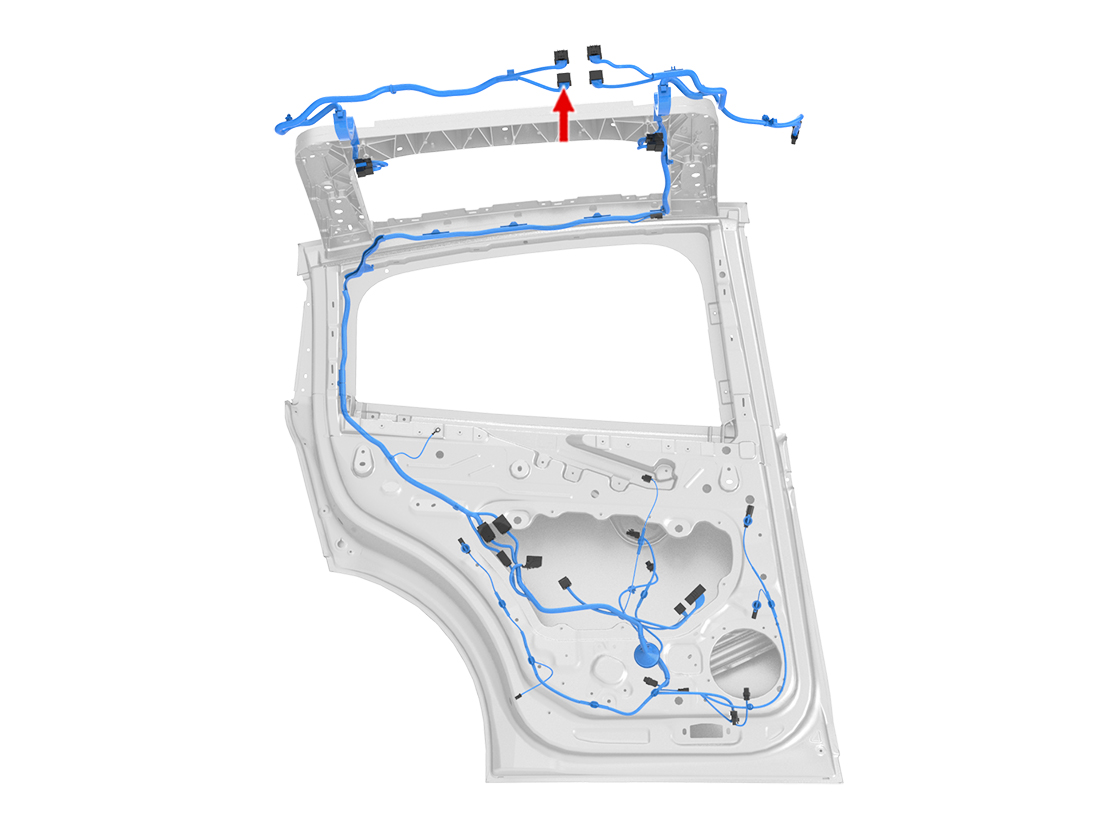

Location:
Connector Detail: Molex 34969-0140
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.35 | SN | X691-12 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | VT | 0.35 | SN | X691-7 | Molex 34803-3211 | | 1099524-00-A | |
| 5 | SI | 0.35 | SN | X691-11 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | BK | 0.35 | SN | X691-5 | Molex 34803-3211 | | 1099524-00-A | |
| 7 | RD | 0.35 | SN | X691-3 | Molex 34803-3211 | | 1099524-00-A | |
| 8 | BU | 0.35 | SN | X691-4 | Molex 34803-3211 | | 1099524-00-A | |
| 9 | GN | 0.35 | SN | X691-10 | Molex 34803-3211 | | 1099524-00-A | |
| 10 | GY | 0.35 | SN | X691-2 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | RD | 2 | SN | X691-1 | AMP 1326030-3 | | 1099433-00-A | |
| 12 | BU | 2 | SN | X691-6 | AMP 1326030-3 | | 1099433-00-A | |
| 13 | GN | 2 | SN | X691-9 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | SI | 0.35 | SN | X691-8 | AMP 1326030-1 | | 1099431-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.35 | SN | X691-12 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | VT | 0.35 | SN | X691-7 | Molex 34803-3211 | | 1099524-00-A | |
| 5 | SI | 0.35 | SN | X691-11 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | BK | 0.35 | SN | X691-5 | Molex 34803-3211 | | 1099524-00-A | |
| 7 | RD | 0.35 | SN | X691-3 | Molex 34803-3211 | | 1099524-00-A | |
| 8 | BU | 0.35 | SN | X691-4 | Molex 34803-3211 | | 1099524-00-A | |
| 9 | GN | 0.35 | SN | X691-10 | Molex 34803-3211 | | 1099524-00-A | |
| 10 | GY | 0.35 | SN | X691-2 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | RD | 2 | SN | X691-1 | AMP 1326030-3 | | 1099433-00-A | |
| 12 | BU | 2 | SN | X691-6 | AMP 1326030-3 | | 1099433-00-A | |
| 13 | GN | 2 | SN | X691-9 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | SI | 0.35 | SN | X691-8 | AMP 1326030-1 | | 1099431-00-A | |
