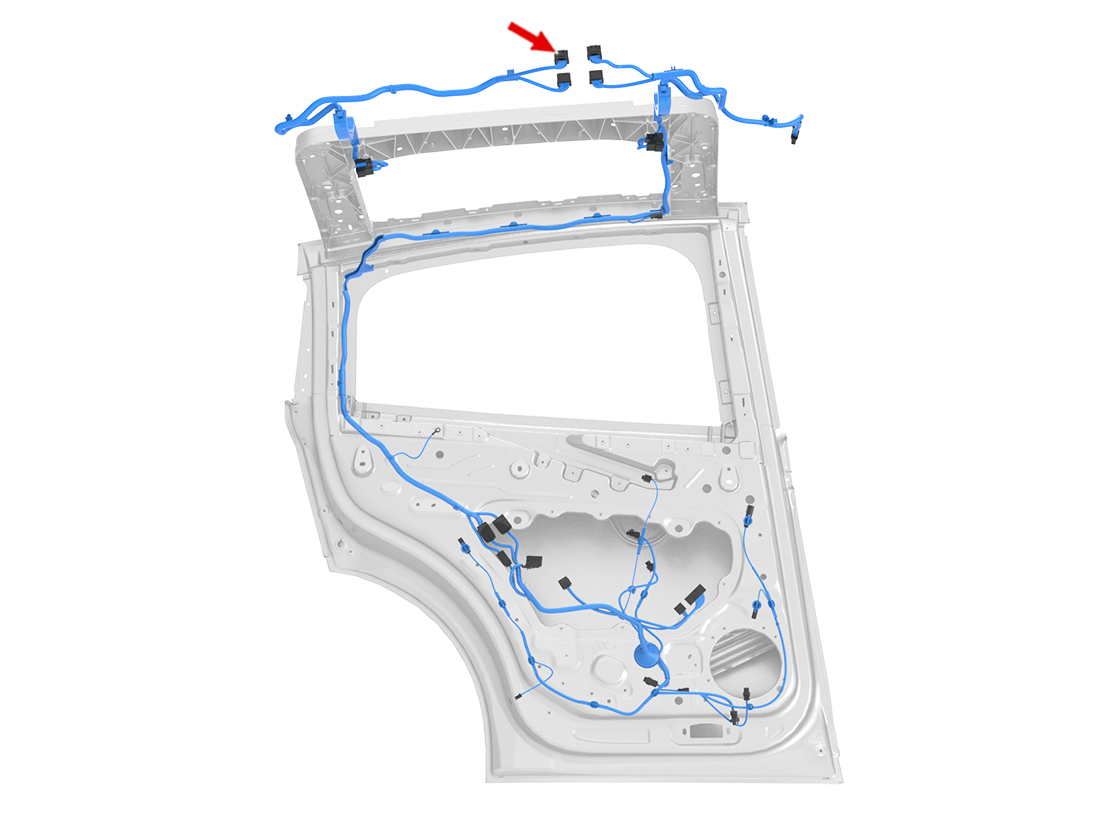

Location:
Connector Detail: Molex 34969-0141
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X692-2 | Molex 34803-3211 | | 1099524-00-A | |
| 2 | BK | 0.35 | SN | X692-5 | Molex 34803-3211 | | 1099524-00-A | |
| 3 | RD | 0.35 | SN | X692-3 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | BU | 0.35 | SN | X692-4 | Molex 34803-3211 | | 1099524-00-A | |
| 5 | GN | 0.35 | SN | X692-10 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | SI | 0.35 | SN | X692-11 | Molex 34803-3211 | | 1099524-00-A | |
| 9 | VT | 0.35 | SN | X692-7 | Molex 34803-3211 | | 1099524-00-A | |
| 10 | WH | 0.35 | SN | X692-12 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | SI | 0.35 | SN | X692-8 | AMP 1326030-1 | | 1099431-00-A | |
| 12 | RD | 2 | SN | X692-1 | AMP 1326030-3 | | 1099433-00-A | |
| 13 | BU | 2 | SN | X692-6 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | GN | 2 | SN | X692-9 | AMP 1326030-3 | | 1099433-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X692-2 | Molex 34803-3211 | | 1099524-00-A | |
| 2 | BK | 0.35 | SN | X692-5 | Molex 34803-3211 | | 1099524-00-A | |
| 3 | RD | 0.35 | SN | X692-3 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | BU | 0.35 | SN | X692-4 | Molex 34803-3211 | | 1099524-00-A | |
| 5 | GN | 0.35 | SN | X692-10 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | SI | 0.35 | SN | X692-11 | Molex 34803-3211 | | 1099524-00-A | |
| 9 | VT | 0.35 | SN | X692-7 | Molex 34803-3211 | | 1099524-00-A | |
| 10 | WH | 0.35 | SN | X692-12 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | SI | 0.35 | SN | X692-8 | AMP 1326030-1 | | 1099431-00-A | |
| 12 | RD | 2 | SN | X692-1 | AMP 1326030-3 | | 1099433-00-A | |
| 13 | BU | 2 | SN | X692-6 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | GN | 2 | SN | X692-9 | AMP 1326030-3 | | 1099433-00-A | |
