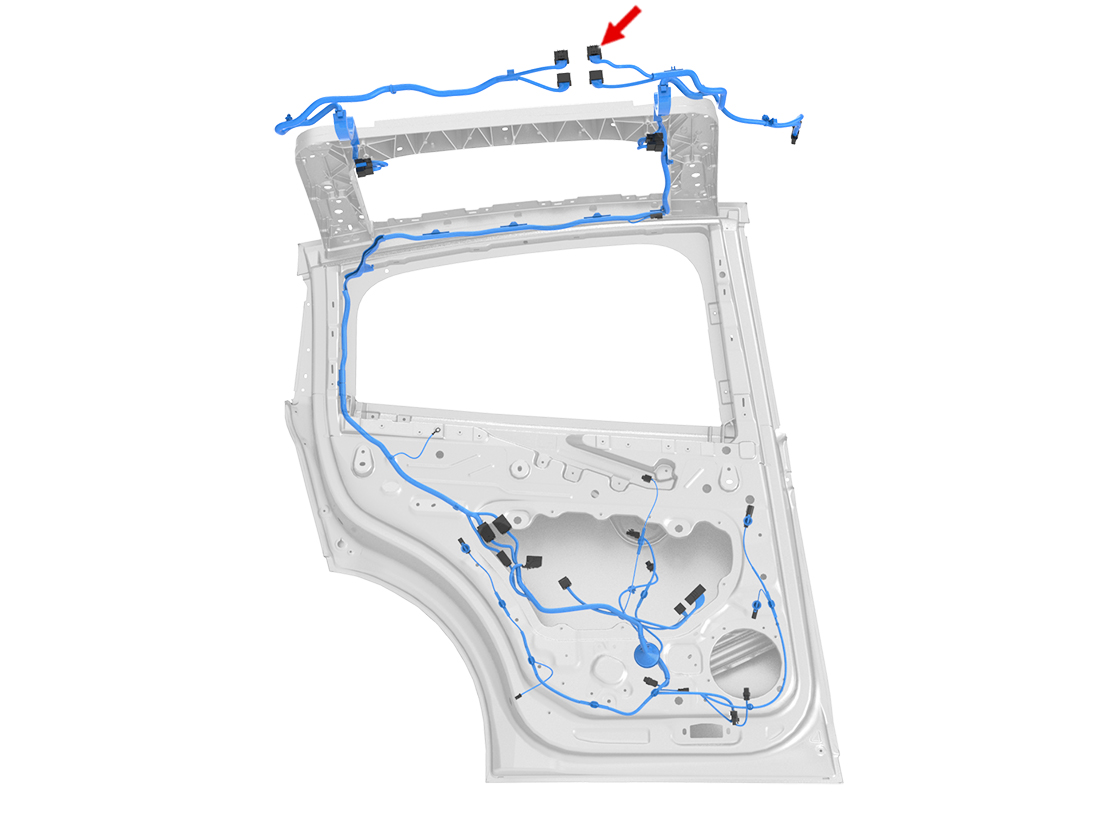

Location:
Connector Detail: Molex 34969-0142
Color: Brown
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X693-2 | Molex 34803-3211 | | 1099524-00-A | |
| 2 | BK | 0.35 | SN | X693-5 | Molex 34803-3211 | | 1099524-00-A | |
| 3 | RD | 0.35 | SN | X693-3 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | BU | 0.35 | SN | X693-4 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | SI | 0.35 | SN | X693-11 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | RD | 2 | SN | X693-1 | AMP 1326030-3 | | 1099433-00-A | |
| 12 | BU | 2 | SN | X693-6 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | SI | 0.35 | SN | X693-8 | AMP 1326030-1 | | 1099431-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X693-2 | Molex 34803-3211 | | 1099524-00-A | |
| 2 | BK | 0.35 | SN | X693-5 | Molex 34803-3211 | | 1099524-00-A | |
| 3 | RD | 0.35 | SN | X693-3 | Molex 34803-3211 | | 1099524-00-A | |
| 4 | BU | 0.35 | SN | X693-4 | Molex 34803-3211 | | 1099524-00-A | |
| 6 | SI | 0.35 | SN | X693-11 | Molex 34803-3211 | | 1099524-00-A | |
| 11 | RD | 2 | SN | X693-1 | AMP 1326030-3 | | 1099433-00-A | |
| 12 | BU | 2 | SN | X693-6 | AMP 1326030-3 | | 1099433-00-A | |
| 14 | SI | 0.35 | SN | X693-8 | AMP 1326030-1 | | 1099431-00-A | |
