X683 - s-rhd-sop10

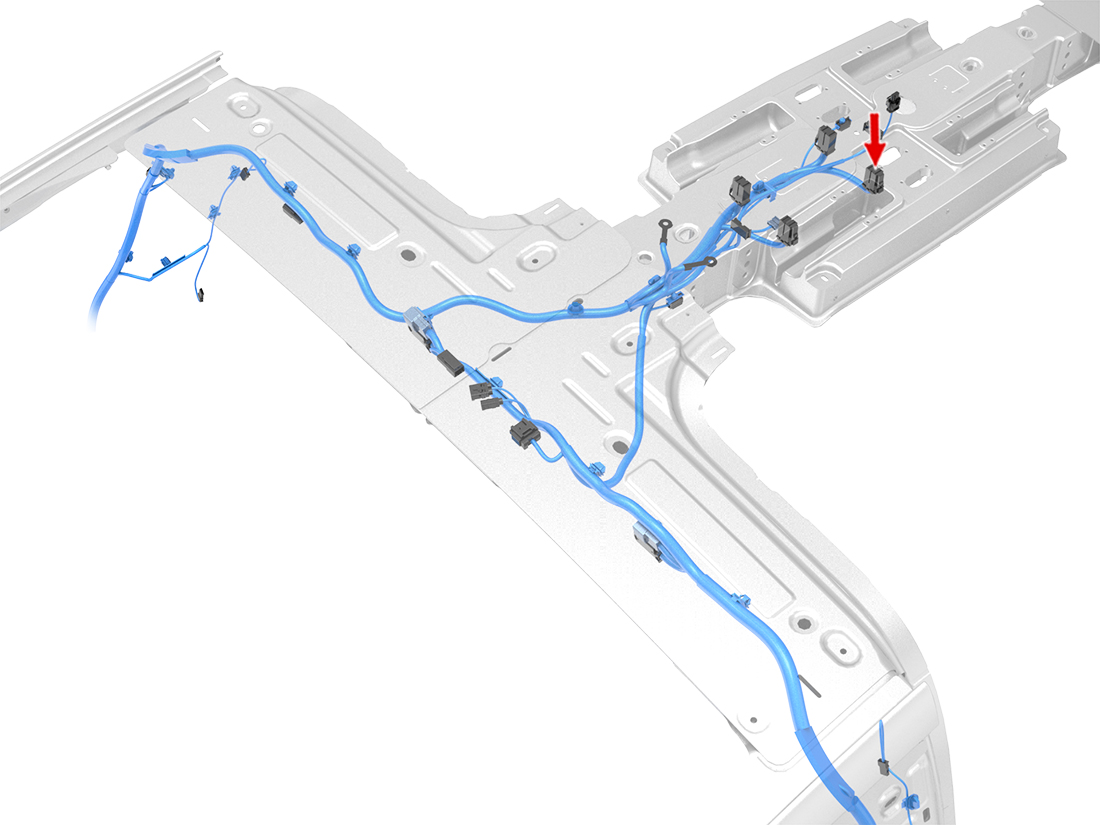

Location:
Connector Detail: YAZAKI 7123-4123-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| PLUS | RD/WH | 6 | SN | X043-3 | YAZAKI 7116-3250 | |||
| MINUS | BK | 6 | SN | GND_FC2-1 | YAZAKI 7116-3250 |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| PLUS | RD/WH | 6 | SN | X043-3 | YAZAKI 7116-3250 | |||
| MINUS | BK | 6 | SN | GND_FC2-1 | YAZAKI 7116-3250 |
