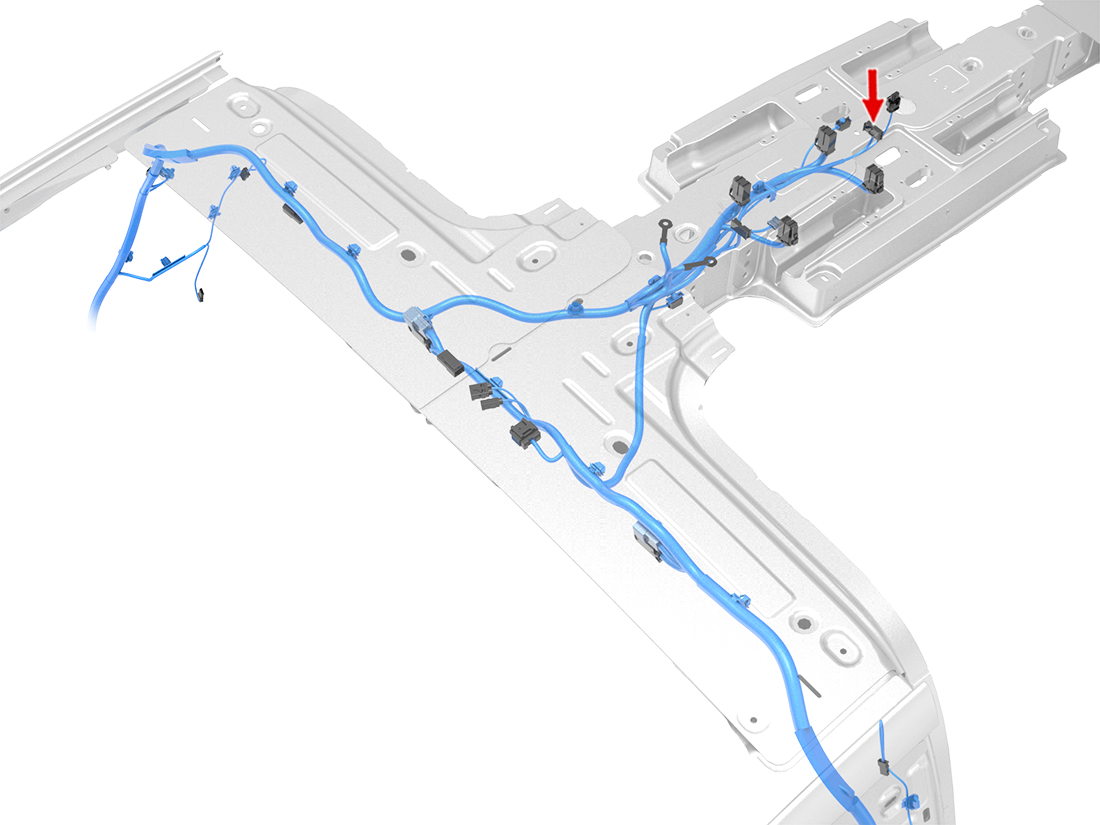

Location:
Connector Detail: MOLEX 34824-0200
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.13 | SN | X976M-14 | MOLEX 560023-0444 | | 1108392-00-C | |
| 4 | BN | 0.13 | SN | X976M-21 | MOLEX 560023-0444 | | 1108392-00-C | |
| 5 | BU | 0.13 | SN | X553-3 | MOLEX 560023-0444 | | 1108392-00-C | |
| 6 | GY | 0.13 | SN | X977M-11 | MOLEX 560023-0444 | | 1108392-00-C | |
| 7 | WH | 0.13 | SN | X977M-9 | MOLEX 560023-0444 | | 1108392-00-C | |
| 8 | BK | 0.13 | SN | X924M-16 | MOLEX 560023-0444 | | 1108392-00-C | |
| 12 | BN | 0.35 | SN | X977M-17 | MOLEX 560023-0448 | | 1108392-00-C | |
| 13 | BU | 0.35 | SN | X977M-6 | MOLEX 560023-0448 | | 1108392-00-C | |
| 15 | WH | 0.13 | SN | X553-1 | MOLEX 560023-0444 | | 1108392-00-C | |
| 16 | GN | 0.13 | SN | X553-2 | MOLEX 560023-0444 | | 1108392-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.13 | SN | X976M-14 | MOLEX 560023-0444 | | 1108392-00-C | |
| 4 | BN | 0.13 | SN | X976M-21 | MOLEX 560023-0444 | | 1108392-00-C | |
| 5 | BU | 0.13 | SN | X553-3 | MOLEX 560023-0444 | | 1108392-00-C | |
| 6 | GY | 0.13 | SN | X977M-11 | MOLEX 560023-0444 | | 1108392-00-C | |
| 7 | WH | 0.13 | SN | X977M-9 | MOLEX 560023-0444 | | 1108392-00-C | |
| 8 | BK | 0.13 | SN | X924M-16 | MOLEX 560023-0444 | | 1108392-00-C | |
| 12 | BN | 0.35 | SN | X977M-17 | MOLEX 560023-0448 | | 1108392-00-C | |
| 13 | BU | 0.35 | SN | X977M-6 | MOLEX 560023-0448 | | 1108392-00-C | |
| 15 | WH | 0.13 | SN | X553-1 | MOLEX 560023-0444 | | 1108392-00-C | |
| 16 | GN | 0.13 | SN | X553-2 | MOLEX 560023-0444 | | 1108392-00-C | |
