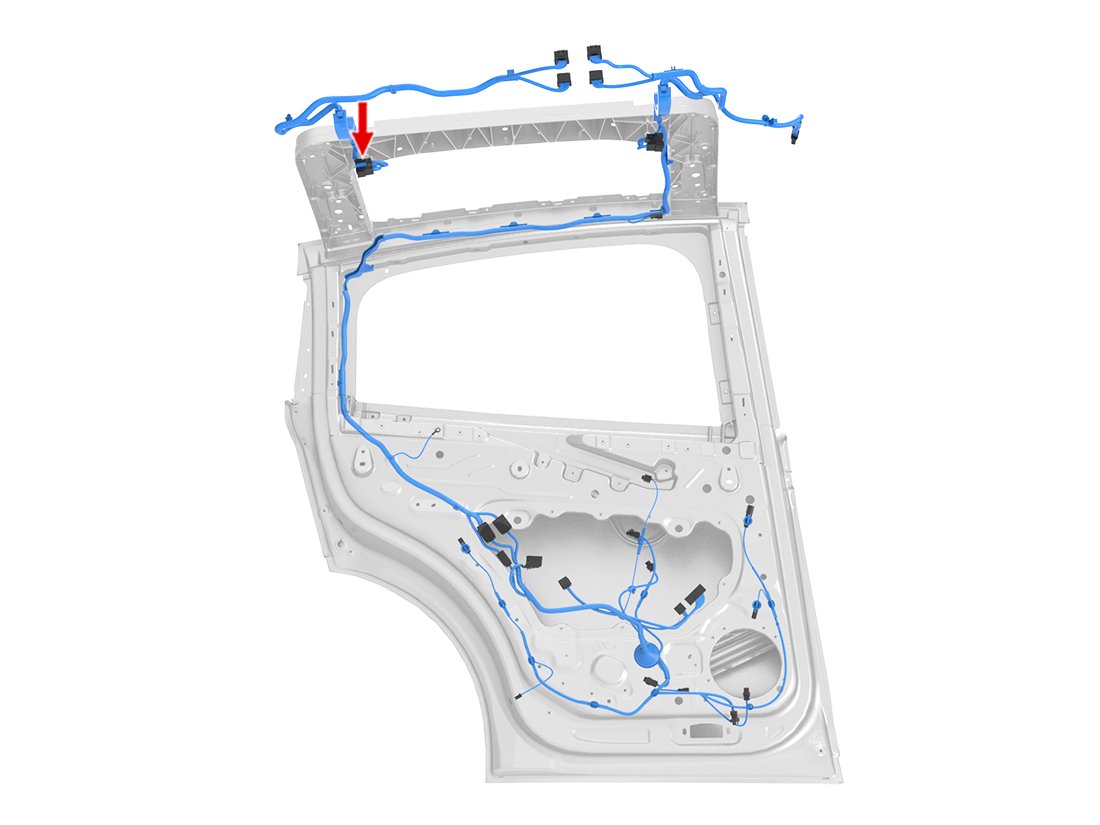

Location:
Connector Detail: Sumitomo 6098-5704
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 2 | SN | X672-12 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 2 | GY | 0.35 | SN | X672-1 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 3 | RD | 0.35 | SN | X672-3 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 4 | BU | 0.35 | SN | X672-4 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 5 | BK | 0.35 | SN | X672-2 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 6 | BU | 2 | SN | X672-13 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 7 | VT | 0.35 | SN | X672-9 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 8 | SI | 0.35 | SN | X672-11 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 9 | GN | 2 | SN | X672-14 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 10 | GN | 0.35 | SN | X672-5 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 11 | SI | 0.35 | SN | X672-6 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 12 | WH | 0.35 | SN | X672-10 | Sumitomo 8230-4925 | | 1099537-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 2 | SN | X672-12 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 2 | GY | 0.35 | SN | X672-1 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 3 | RD | 0.35 | SN | X672-3 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 4 | BU | 0.35 | SN | X672-4 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 5 | BK | 0.35 | SN | X672-2 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 6 | BU | 2 | SN | X672-13 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 7 | VT | 0.35 | SN | X672-9 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 8 | SI | 0.35 | SN | X672-11 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 9 | GN | 2 | SN | X672-14 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 10 | GN | 0.35 | SN | X672-5 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 11 | SI | 0.35 | SN | X672-6 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 12 | WH | 0.35 | SN | X672-10 | Sumitomo 8230-4925 | | 1099537-00-A | |
