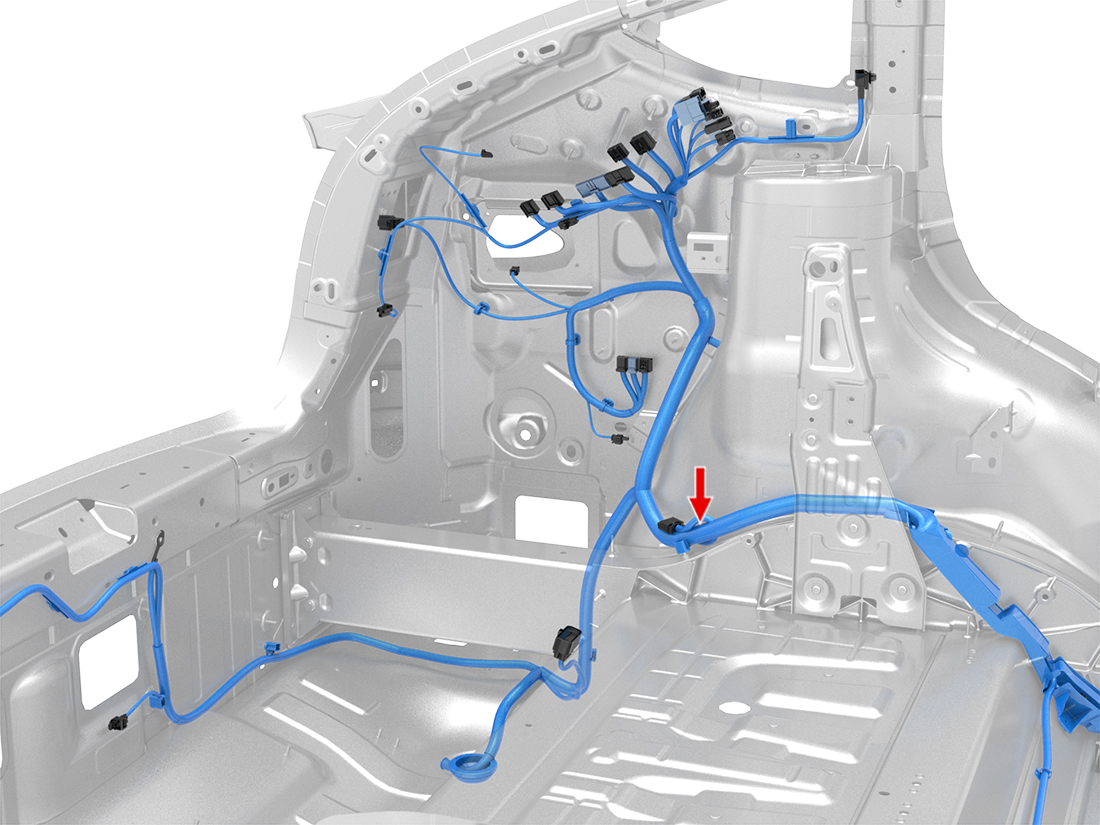

Location:
Connector Detail: SUMITOMO 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 8 | GN/WH | 0.35 | SN | X161-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X131-24 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 10 | GN/WH | 0.35 | SN | X977M-12 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 12 | VT/WH | 0.35 | SN | X071-37 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 13 | VT/WH | 0.35 | SN | X353-4 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 14 | VT/WH | 0.35 | SN | X954M-4 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 19 | GN | 0.35 | SN | X161-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | GN | 0.35 | SN | X131-23 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 21 | GN | 0.35 | SN | X977M-19 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 8 | GN/WH | 0.35 | SN | X161-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X131-24 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 10 | GN/WH | 0.35 | SN | X977M-12 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 12 | VT/WH | 0.35 | SN | X071-37 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 13 | VT/WH | 0.35 | SN | X353-4 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 14 | VT/WH | 0.35 | SN | X954M-4 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 19 | GN | 0.35 | SN | X161-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | GN | 0.35 | SN | X131-23 | SUMITOMO 8100-3624 | | 1099530-00-A | |
| 21 | GN | 0.35 | SN | X977M-19 | SUMITOMO 8100-3624 | | 1099530-00-A | |
