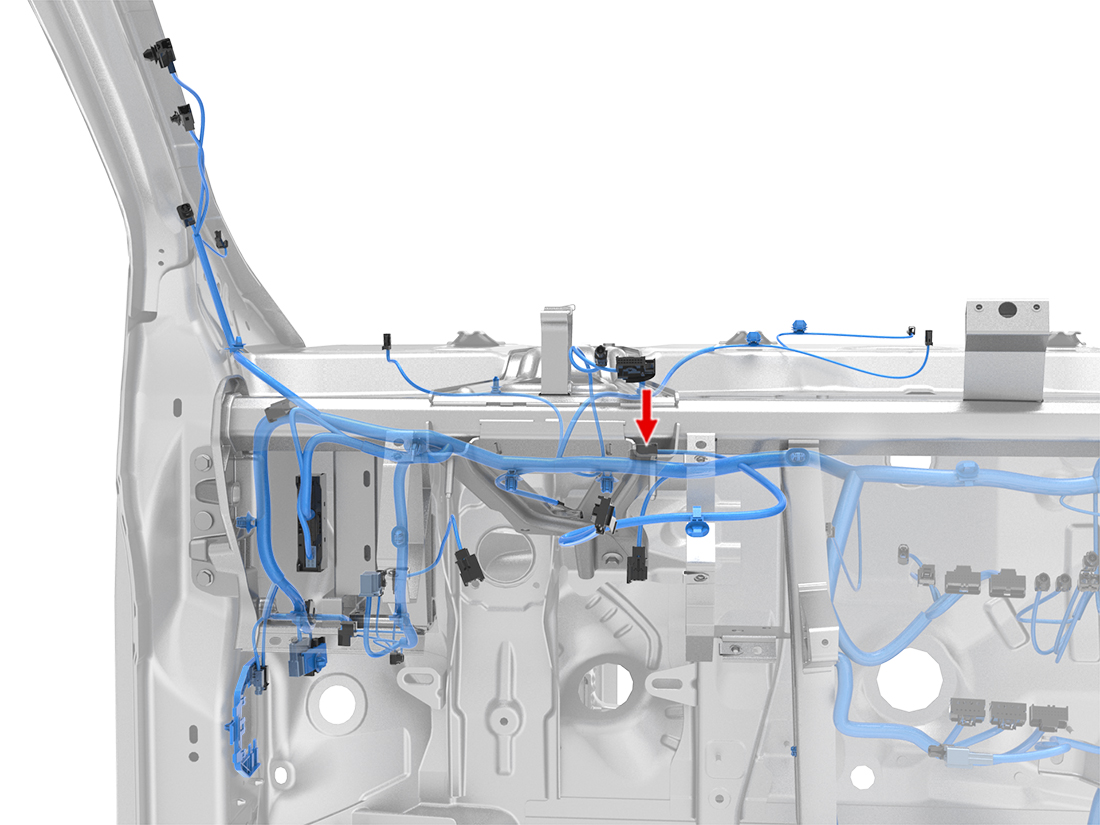

Location:
Connector Detail: Sumitomo 6098-3928
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.13 | SN | X915F-4 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X171-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | GN/WH | 0.35 | SN | X179-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X126-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | GN/WH | 0.35 | SN | X177-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | GN/WH | 0.5 | SN | X178-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X180-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | GN | 0.13 | SN | X915F-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X171-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X179-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | GN | 0.35 | SN | X126-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 18 | GN | 0.35 | SN | X177-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | GN | 0.5 | SN | X178-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | GN | 0.35 | SN | X180-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | WH | 0.13 | SN | X915F-4 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X171-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | GN/WH | 0.35 | SN | X179-13 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X126-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | GN/WH | 0.35 | SN | X177-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | GN/WH | 0.5 | SN | X178-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X180-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | GN | 0.13 | SN | X915F-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X171-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X179-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | GN | 0.35 | SN | X126-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 18 | GN | 0.35 | SN | X177-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | GN | 0.5 | SN | X178-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | GN | 0.35 | SN | X180-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
