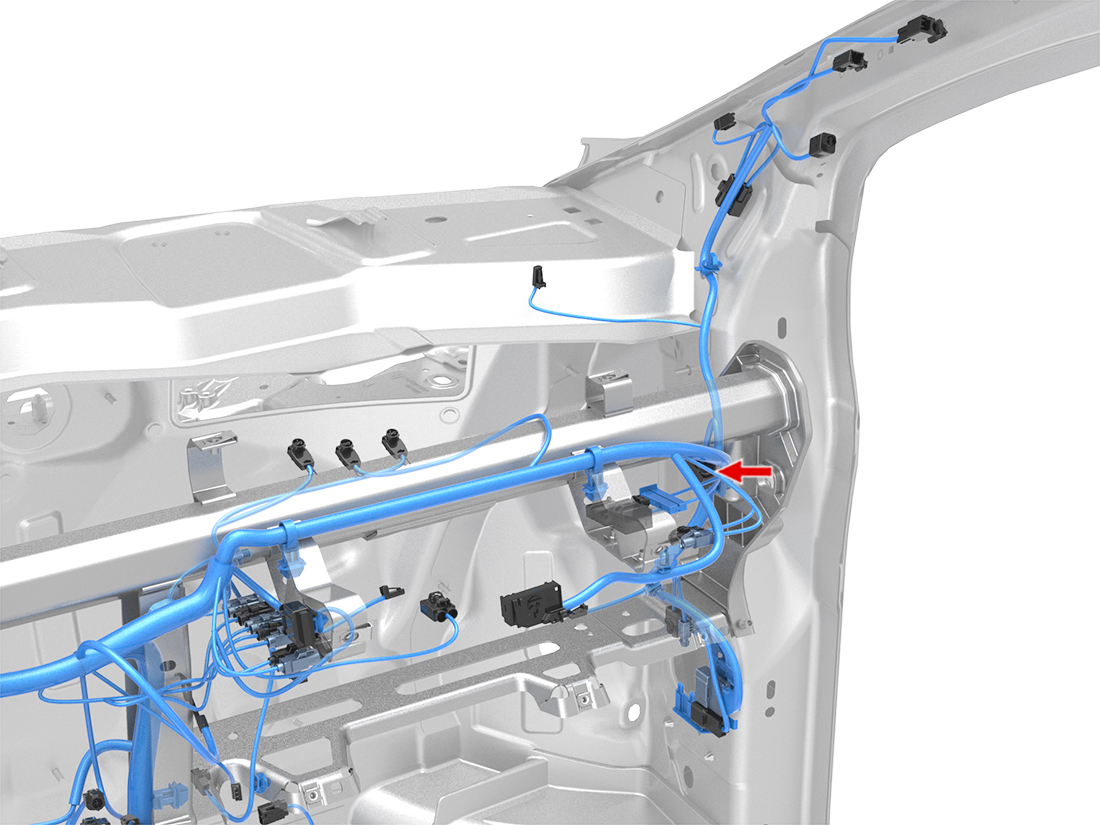

Location:
Connector Detail: Sumitomo 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.13 | SN | X728-4 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X179-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 3 | BN/WH | 0.35 | SN | X922M-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | WH | 0.13 | SN | X732-1 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 5 | VT/WH | 0.35 | SN | X927F-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | VT/WH | 0.35 | SN | X171-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | VT/WH | 0.35 | SN | X179-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | WH | 0.35 | SN | X280-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | WH | 0.13 | SN | X060-16 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 10 | WH | 0.35 | SN | X281-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | BN | 0.13 | SN | X728-15 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 13 | BN | 0.35 | SN | X179-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | BN | 0.35 | SN | X922M-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BN | 0.13 | SN | X732-12 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X927F-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X171-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X179-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 20 | GN/WH | 0.35 | SN | X171-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 21 | GN/WH | 0.35 | SN | X924F-12 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 22 | GN/WH | 0.35 | SN | X060-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.13 | SN | X728-4 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X179-9 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 3 | BN/WH | 0.35 | SN | X922M-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | WH | 0.13 | SN | X732-1 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 5 | VT/WH | 0.35 | SN | X927F-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | VT/WH | 0.35 | SN | X171-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | VT/WH | 0.35 | SN | X179-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | WH | 0.35 | SN | X280-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | WH | 0.13 | SN | X060-16 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 10 | WH | 0.35 | SN | X281-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | BN | 0.13 | SN | X728-15 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 13 | BN | 0.35 | SN | X179-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | BN | 0.35 | SN | X922M-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BN | 0.13 | SN | X732-12 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X927F-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X171-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X179-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 20 | GN/WH | 0.35 | SN | X171-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 21 | GN/WH | 0.35 | SN | X924F-12 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 22 | GN/WH | 0.35 | SN | X060-15 | Sumitomo 8100-3624 | | 1099530-00-A | |
