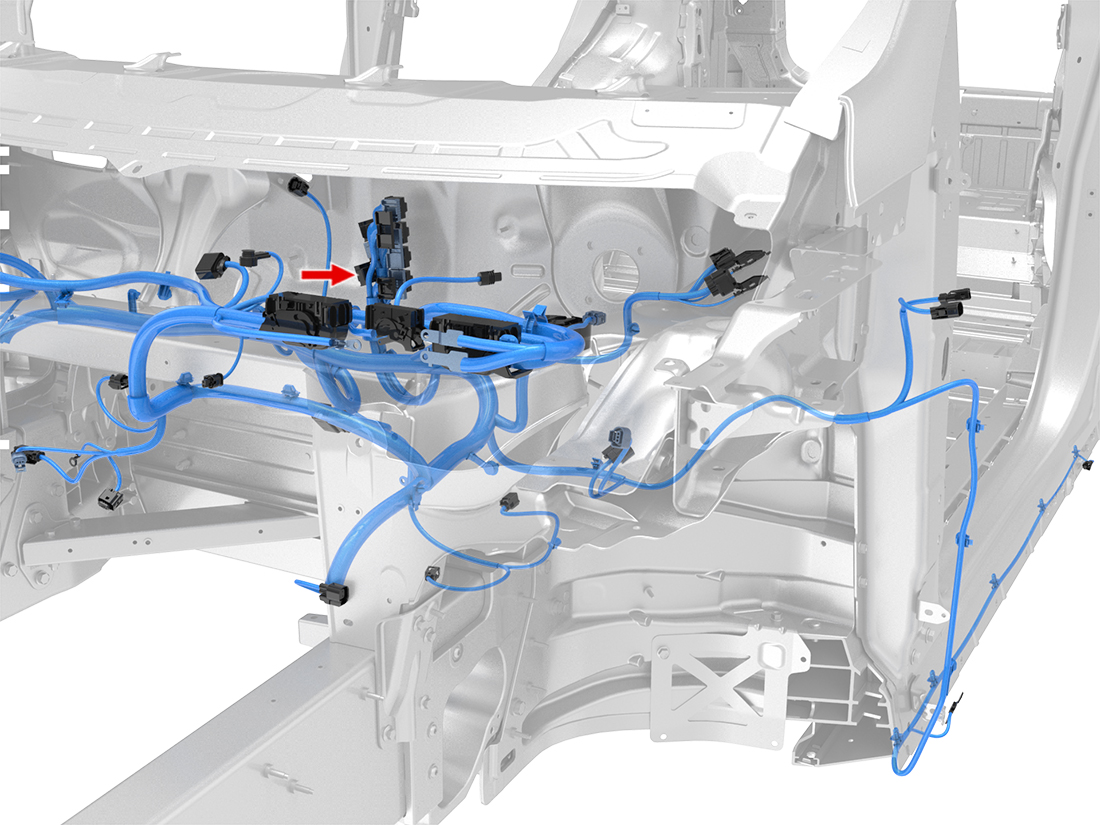

Location:
Connector Detail: Sumitomo 6098-3926
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X501-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 2 | BU/WH | 0.5 | SN | X530-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | WH | 0.13 | SN | X911F-7 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 7 | YE/WH | 0.5 | SN | X166-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | YE/WH | 0.5 | SN | X151-33 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | YE/WH | 0.35 | SN | X911F-11 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | YE/WH | 0.5 | SN | X150-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | YE/WH | 0.5 | SN | X150A-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.35 | SN | X914M-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | BU | 0.35 | SN | X501-19 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 13 | BU | 0.5 | SN | X530-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | BU | 0.13 | SN | X911F-17 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 18 | YE | 0.5 | SN | X166-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | YE | 0.5 | SN | X151-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | YE | 0.35 | SN | X911F-20 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 21 | YE | 0.5 | SN | X150-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | YE | 0.5 | SN | X150A-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | YE | 0.35 | SN | X914M-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X501-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 2 | BU/WH | 0.5 | SN | X530-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | WH | 0.13 | SN | X911F-7 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 7 | YE/WH | 0.5 | SN | X166-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | YE/WH | 0.5 | SN | X151-33 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | YE/WH | 0.35 | SN | X911F-11 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | YE/WH | 0.5 | SN | X150-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | YE/WH | 0.5 | SN | X150A-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.35 | SN | X914M-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | BU | 0.35 | SN | X501-19 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 13 | BU | 0.5 | SN | X530-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | BU | 0.13 | SN | X911F-17 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 18 | YE | 0.5 | SN | X166-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | YE | 0.5 | SN | X151-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | YE | 0.35 | SN | X911F-20 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 21 | YE | 0.5 | SN | X150-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | YE | 0.5 | SN | X150A-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | YE | 0.35 | SN | X914M-17 | Sumitomo 8100-3624 | | 1099530-00-A | |
