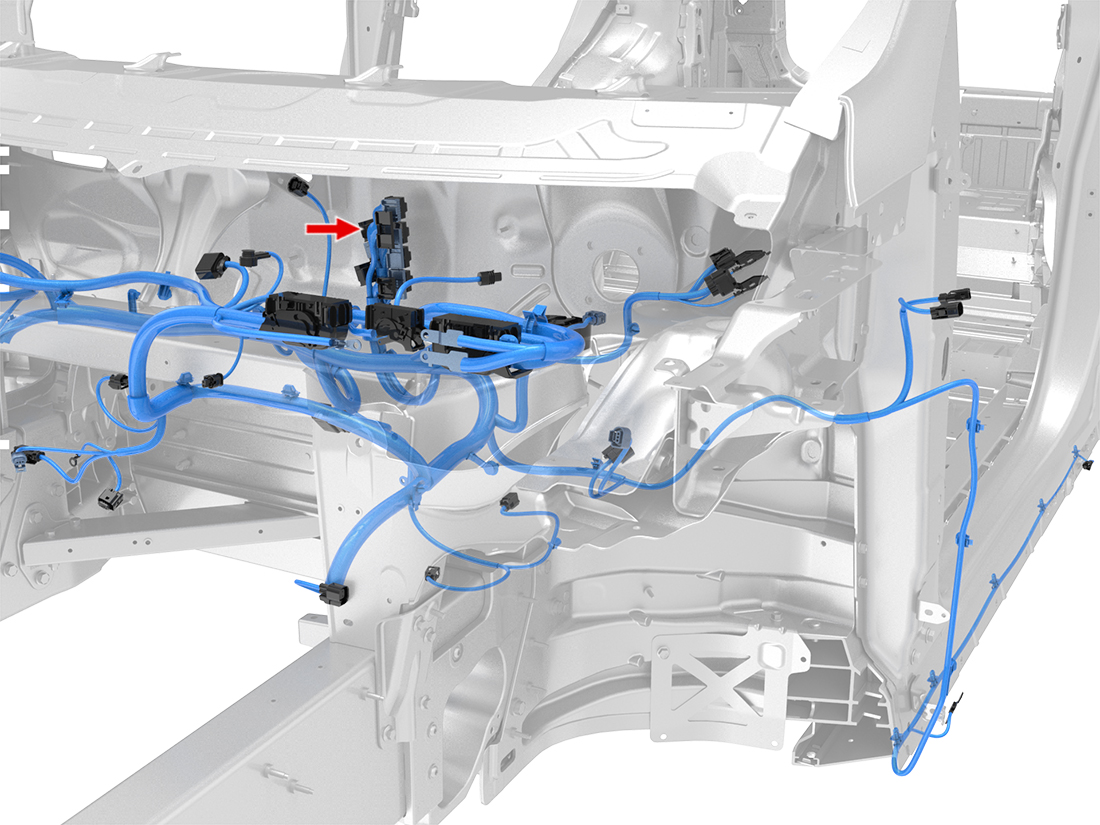

Location:
Connector Detail: Sumitomo 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X506-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.5 | SN | X906F-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN/WH | 0.5 | SN | X521-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X502-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | BN | 0.13 | SN | X052-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 6 | BN | 0.5 | SN | X901M-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BN | 0.5 | SN | X260-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X502-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X515-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X514-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | RD/BK | 0.5 | SN | X910F-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD/BK | 0.5 | SN | X101-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD/BK | 0.35 | SN | X012-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.13 | SN | X052-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 17 | VT | 0.5 | SN | X261-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.5 | SN | X901M-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X506-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.5 | SN | X906F-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | GN/WH | 0.5 | SN | X521-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X502-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | BN | 0.13 | SN | X052-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 6 | BN | 0.5 | SN | X901M-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BN | 0.5 | SN | X260-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X502-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X515-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X514-4 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 12 | RD/BK | 0.5 | SN | X910F-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD/BK | 0.5 | SN | X101-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD/BK | 0.35 | SN | X012-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.13 | SN | X052-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 17 | VT | 0.5 | SN | X261-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.5 | SN | X901M-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
