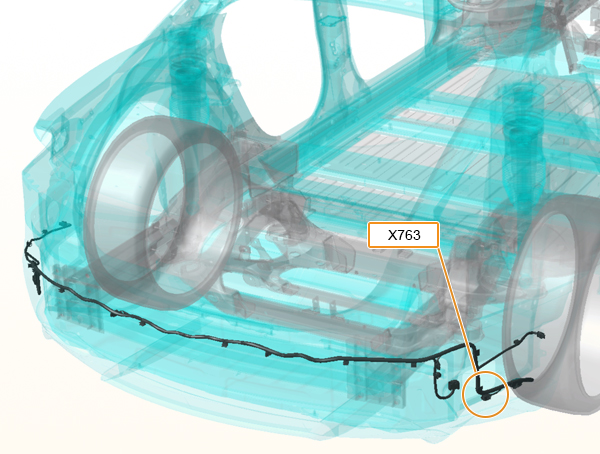

Location:
Connector Detail: Yazaki 7283-2764-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X148-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 2 | VT | 0.5 | SN | X147-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 3 | VT | 0.5 | SN | X909F-4 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 4 | VT/WH | 0.5 | SN | X148-2 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 5 | VT/WH | 0.5 | SN | X147-2 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 6 | VT/WH | 0.5 | SN | X909F-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X148-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 2 | VT | 0.5 | SN | X147-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 3 | VT | 0.5 | SN | X909F-4 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 4 | VT/WH | 0.5 | SN | X148-2 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 5 | VT/WH | 0.5 | SN | X147-2 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
| 6 | VT/WH | 0.5 | SN | X909F-3 | Yazaki 7116-4416-02 | Yazaki 7158-3167-80 | 1102120-00-B | |
