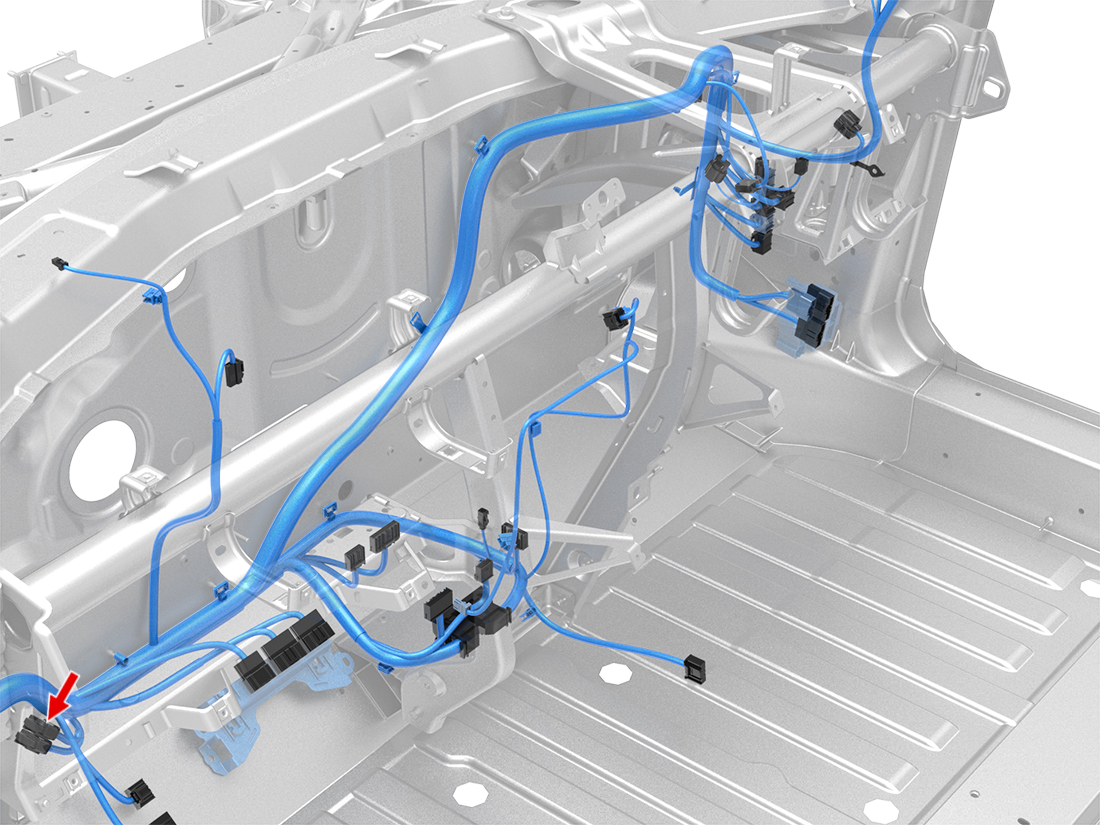

Location:
Location:
Connector Detail: Sumitomo 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X087-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | VT/WH | 0.35 | SN | X949M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | VT/WH | 0.35 | SN | X778-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | VT/WH | 0.35 | SN | X055-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | YE/WH | 0.35 | SN | X108-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | YE/WH | 0.35 | SN | X949M-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | YE/WH | 0.5 | SN | X954M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | BN/WH | 0.35 | SN | X775-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BN/WH | 0.35 | SN | X404-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BN/WH | 0.35 | SN | X955M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | BN/WH | 0.35 | SN | X976F-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | VT | 0.35 | SN | X087-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | VT | 0.35 | SN | X949M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X778-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | VT | 0.35 | SN | X055-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | YE | 0.35 | SN | X108-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | YE | 0.35 | SN | X949M-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | YE | 0.5 | SN | X954M-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BN | 0.35 | SN | X775-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X404-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BN | 0.35 | SN | X955M-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | BN | 0.35 | SN | X976F-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.35 | SN | X087-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | VT/WH | 0.35 | SN | X949M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | VT/WH | 0.35 | SN | X778-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | VT/WH | 0.35 | SN | X055-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | YE/WH | 0.35 | SN | X108-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | YE/WH | 0.35 | SN | X949M-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | YE/WH | 0.5 | SN | X954M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | BN/WH | 0.35 | SN | X775-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BN/WH | 0.35 | SN | X404-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BN/WH | 0.35 | SN | X955M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | BN/WH | 0.35 | SN | X976F-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | VT | 0.35 | SN | X087-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | VT | 0.35 | SN | X949M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X778-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | VT | 0.35 | SN | X055-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | YE | 0.35 | SN | X108-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | YE | 0.35 | SN | X949M-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | YE | 0.5 | SN | X954M-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BN | 0.35 | SN | X775-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X404-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BN | 0.35 | SN | X955M-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | BN | 0.35 | SN | X976F-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
