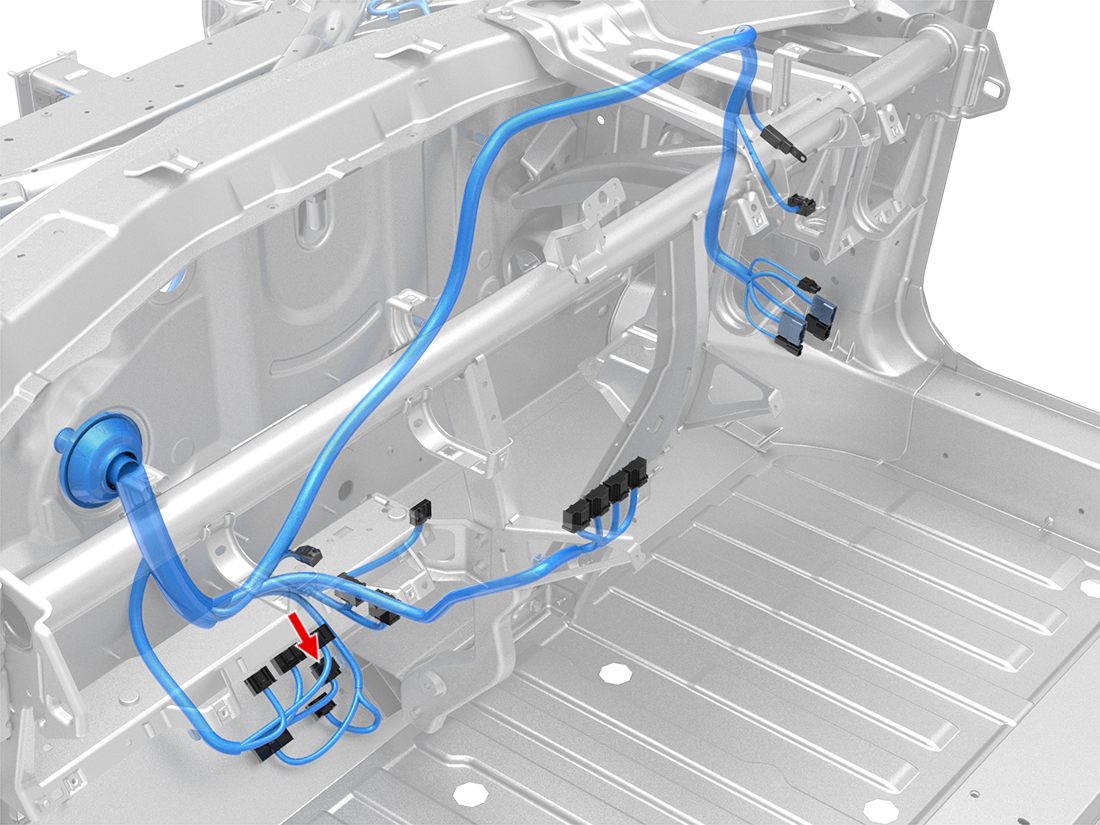

Location:
Location:
Connector Detail: Sumitomo 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X180A-28 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | Z11-+CNC09-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X955F-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | RD/BK | 0.35 | SN | X953F-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.35 | SN | X540-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X041-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | Z9-+CNP05-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X051-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X977M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X041-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X180A-29 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | Z12-+CNC10-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X955F-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BU/WH | 0.35 | SN | X953F-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BU/WH | 0.35 | SN | X261-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | BU/WH | 0.35 | SN | X267-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | Z10-+CNP06-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X051-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X977M-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X041-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X180A-28 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | Z11-+CNC09-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X955F-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | RD/BK | 0.35 | SN | X953F-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.35 | SN | X540-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X041-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | Z9-+CNP05-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X051-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X977M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X041-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X180A-29 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | Z12-+CNC10-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X955F-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BU/WH | 0.35 | SN | X953F-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BU/WH | 0.35 | SN | X261-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | BU/WH | 0.35 | SN | X267-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | Z10-+CNP06-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X051-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X977M-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X041-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
